Ojniční ložiska ACL Race Series 4B7712H-STD

Detailní popis produktu

 Ojniční ložiska ACL Race Series 4B7712H-STD



Popis výrobce:

The unique combination of design; metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.

Designed to withstand higher RPM conditions; ACL Race Series Engine Bearings are available for many of the popular 4; 6 & 8 cylinder applications and feature:

• High strength overlay plate with reduced thickness for improved fatigue properties
• Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
• Increased crush for improved bearing retention
• Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
• Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
• 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
• Tight consistent wall tolerances to help you maintain consistent clearances.
• Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.



Tunnel [mm]: 48.655 / 48.671, Shaft [mm]: 44.975 / 44.991, Max. Wall: 1.82, Max. Length: 19.75, Half type: Identical halves>
Aplikace: Renault/R14/SOHC 8v/150-X5J, Renault/R14/SOHC 8v/129-5; XZ7R, Citroën/AX/SOHC/OHC 8v/TU9M, Citroën/SAXO/SOHC/OHC 8v/TU9M, Peugeot/106 I/SOHC/OHC 8v/TU9M, Peugeot/106 I/SOHC/OHC 8v/TU9, Peugeot/106 II/SOHC/OHC 8v/TU9M, Peugeot/205 II/SOHC/OHC 8v/TU9M, Peugeot/205 II/SOHC/OHC 8v/TU9, Peugeot/104/SOHC/OHC 8v/XV3, Peugeot/104/SOHC/OHC 8v/XV5, Citroën/VISA/SOHC/OHC 8v/XV8, Peugeot/104/SOHC/OHC 8v/XV8, Peugeot/205/SOHC/OHC 8v/XV8, Peugeot/205 II/SOHC/OHC 8v/TU3,2, Citroën/SAXO/SOHC/OHC 8v/TU5JP, Citroën/XSARA/SOHC/OHC 8v/TU5JP, Peugeot/106 I/SOHC/OHC 8v/TU5JP, Peugeot/106 II/SOHC/OHC 8v/TU5JP, Peugeot/206/SOHC/OHC 8v/TU5JP, Peugeot/306/SOHC/OHC 8v/TU5JP, Citroën/BERLINGO/DOHC 16v/TU5JP4, Citroën/C2/DOHC 16v/TU5JP4, Citroën/C3/DOHC 16v/TU5JP4, Citroën/C3 I/DOHC 16v/TU5JP4, Citroën/C4/DOHC 16v/TU5JP4, Citroën/C4 I/DOHC 16v/TU5JP4, Citroën/C4 II/DOHC 16v/TU5JP4, Citroën/SAXO/DOHC 16v/TU5JP4, Citroën/XSARA/DOHC 16v/TU5JP4, Citroën/C-QUATRE/DOHC 16v/TU5JP4, Citroën/ELYSEE/DOHC 16v/TU5JP4, Peugeot/1007/DOHC 16v/TU5JP4, Peugeot/206/DOHC 16v/TU5JP4, Peugeot/207/DOHC 16v/TU5JP4, Peugeot/307/DOHC 16v/TU5JP4, Peugeot/308 I/DOHC 16v/TU5JP4, Peugeot/405 II/DOHC 16v/TU5JP4, Peugeot/HOGGAR/DOHC 16v/TU5JP4, Peugeot/PARTNER/DOHC 16v/TU5JP4, Peugeot/308/DOHC 16v/TU5JP4, Peugeot/408/DOHC 16v/TU5JP4, Peugeot/205 I/SOHC/OHC 8v/TU1, Peugeot/205 II/SOHC/OHC 8v/TU1, Peugeot/309 II/SOHC/OHC 8v/TU1, Citroën/BERLINGO/SOHC/OHC 8v/TU1JP, Citroën/C2/SOHC/OHC 8v/TU1JP, Citroën/C3 I/SOHC/OHC 8v/TU1JP, Citroën/SAXO/SOHC/OHC 8v/TU1JP, Peugeot/106 II/SOHC/OHC 8v/TU1JP, Peugeot/206/SOHC/OHC 8v/TU1JP, Peugeot/PARTNER/SOHC/OHC 8v/TU1JP, Peugeot/106 II/SOHC/OHC 8v/TU1M, Citroën/AX/SOHC/OHC 8v/TU1M, Citroën/BERLINGO/SOHC/OHC 8v/TU1M, Citroën/BX/SOHC/OHC 8v/TU1M, Citroën/C15/SOHC/OHC 8v/TU1M, Citroën/SAXO/SOHC/OHC 8v/TU1M, Citroën/ZX/SOHC/OHC 8v/TU1M, Peugeot/106 I/SOHC/OHC 8v/TU1M, Peugeot/205 I/SOHC/OHC 8v/TU1M, Peugeot/306/SOHC/OHC 8v/TU1M, Peugeot/309 II/SOHC/OHC 8v/TU1M, Peugeot/PARTNER/SOHC/OHC 8v/TU1M, Peugeot/205 II/SOHC/OHC 8v/TU2,4, Citroën/AX/SOHC/OHC 8v/TU2,4, Peugeot/106 I/SOHC/OHC 8v/TU2J2, Peugeot/104/SOHC/OHC 8v/XW3, Peugeot/104/SOHC/OHC 8v/XW7, Peugeot/205 I/SOHC/OHC 8v/XW7, Peugeot/205 II/SOHC/OHC 8v/XW7, Peugeot/205 I/SOHC/OHC 8v/TU3A, Peugeot/205 II/SOHC/OHC 8v/TU3A, Peugeot/309 I/SOHC/OHC 8v/TU3A, Peugeot/309 II/SOHC/OHC 8v/TU3A, Citroën/AX/SOHC/OHC 8v/TU3CP, Peugeot/205 I/SOHC/OHC 8v/TU3CP, Peugeot/205 II/SOHC/OHC 8v/TU3CP, Citroën/AX/SOHC/OHC 8v/TU3M, Citroën/BX/SOHC/OHC 8v/TU3M, Citroën/C15/SOHC/OHC 8v/TU3M, Peugeot/106 I/SOHC/OHC 8v/TU3M, Peugeot/205 I/SOHC/OHC 8v/TU3M, Peugeot/205 II/SOHC/OHC 8v/TU3M, Peugeot/309 I/SOHC/OHC 8v/TU3M, Peugeot/309 II/SOHC/OHC 8v/TU3M, Peugeot/205 I/SOHC/OHC 8v/TU3S, Peugeot/205 II/SOHC/OHC 8v/TU3S, Peugeot/309 I/SOHC/OHC 8v/TU3S, Citroën/BX/SOHC/OHC 8v/XY6B, Peugeot/104/SOHC/OHC 8v/XY6B, Peugeot/205 I/SOHC/OHC 8v/XY6B, Peugeot/205 II/SOHC/OHC 8v/XY6B, Citroën/C15/SOHC/OHC 8v/XY7, Citroën/VISA/SOHC/OHC 8v/XY7, Peugeot/205 I/SOHC/OHC 8v/XY7, Peugeot/205 II/SOHC/OHC 8v/XY7, Citroën/BX/SOHC/OHC 8v/XY8, Citroën/VISA/SOHC/OHC 8v/XY8, Peugeot/205 I/SOHC/OHC 8v/XY8, Peugeot/205 II/SOHC/OHC 8v/XY8, Citroën/C2/SOHC/OHC 8v/TU3JP, Citroën/C3 I/SOHC/OHC 8v/TU3JP, Citroën/C3/SOHC/OHC 8v/TU3JP, Peugeot/1007/SOHC/OHC 8v/TU3JP, Peugeot/206/SOHC/OHC 8v/TU3JP, Peugeot/PARTNER/SOHC/OHC 8v/TU3JP, Citroën/BERLINGO/SOHC/OHC 8v/TU3JP, Citroën/SAXO/SOHC/OHC 8v/TU3JP, Citroën/XSARA/SOHC/OHC 8v/TU3JP, Peugeot/106 II/SOHC/OHC 8v/TU3JP, Peugeot/207/SOHC/OHC 8v/TU3JP, Peugeot/306/SOHC/OHC 8v/TU3JP, Peugeot/307/SOHC/OHC 8v/TU3JP, Peugeot/HOGGAR/SOHC/OHC 8v/TU3JP, Citroën/ZX/SOHC/OHC 8v/TU3JP, Peugeot/205 II/SOHC/OHC 8v/TU3JP, Peugeot/106 II/SOHC/OHC 8v/TU5J2, Peugeot/106 I/SOHC/OHC 8v/TU5J2, Citroën/VISA/SOHC/OHC 8v/XU5J, Peugeot/205 I/SOHC/OHC 8v/XU5J, Peugeot/205 II/SOHC/OHC 8v/XU5J, Citroën/BX/SOHC/OHC 8v/XU5J, Peugeot/309 I/SOHC/OHC 8v/XU5J, Citroën/XANTIA/SOHC/OHC 8v/XU5JP, Citroën/ZX/SOHC/OHC 8v/XU5JP, Peugeot/405 II/SOHC/OHC 8v/XU5JP, Peugeot/406/SOHC/OHC 8v/XU5JP



APLIKAČNÍ KATALOG ACL

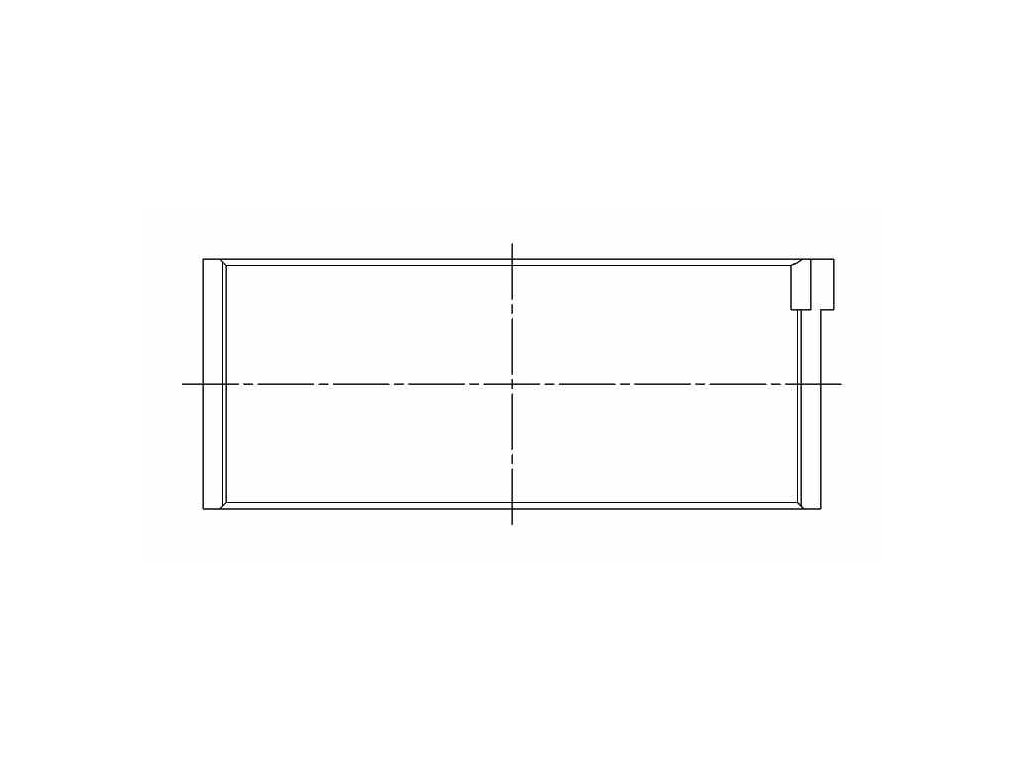

Obrázek je pouze ilustrační.

ACL je australská společnost s více než 70letou tradicí výroby přesných ložisek motorů, sídlící v Launcestonu, Tasmánie. Firma je významným dodavatelem OEM ložisek pro automobilový průmysl a zároveň nabízí rozsáhlý sortiment náhradních dílů pro globální aftermarket. Její produkty jsou známé svou vysokou kvalitou, precizností, robustní metalurgií a výkonem.

ACL má bohatou historii v motorsportu, sahající až do 60. let, kdy vyráběla ložiska pro tým Brabham ve Formuli 1. Její RACE Series Performance Engine Bearings si našly uplatnění v závodech jako australské Supercars, drag racing, rally a drift. Díky tomu jsou často první volbou pro motorové specialisty po celém světě.

Společnost nabízí jednu z největších nabídek ložisek motorů na aftermarketu, pokrývající přes 200 aplikací pro australské, americké, japonské, korejské a evropské vozy. Sortiment se neustále rozšiřuje o nově uvedené motory.

ACL disponuje vysokou úrovní vertikální integrace, zahrnující návrh a výrobu materiálů, nástrojů a složitých výrobních procesů. Firma se pyšní certifikacemi ISO9001:2015 (kvalita), ISO14001:2015 (ekologie) a ISO451001:2018 (bezpečnost práce).

Díky této kombinaci tradice, inovace a zaměření na výkon si ACL vybudovalo celosvětovou reputaci v oblasti motorových ložisek.
