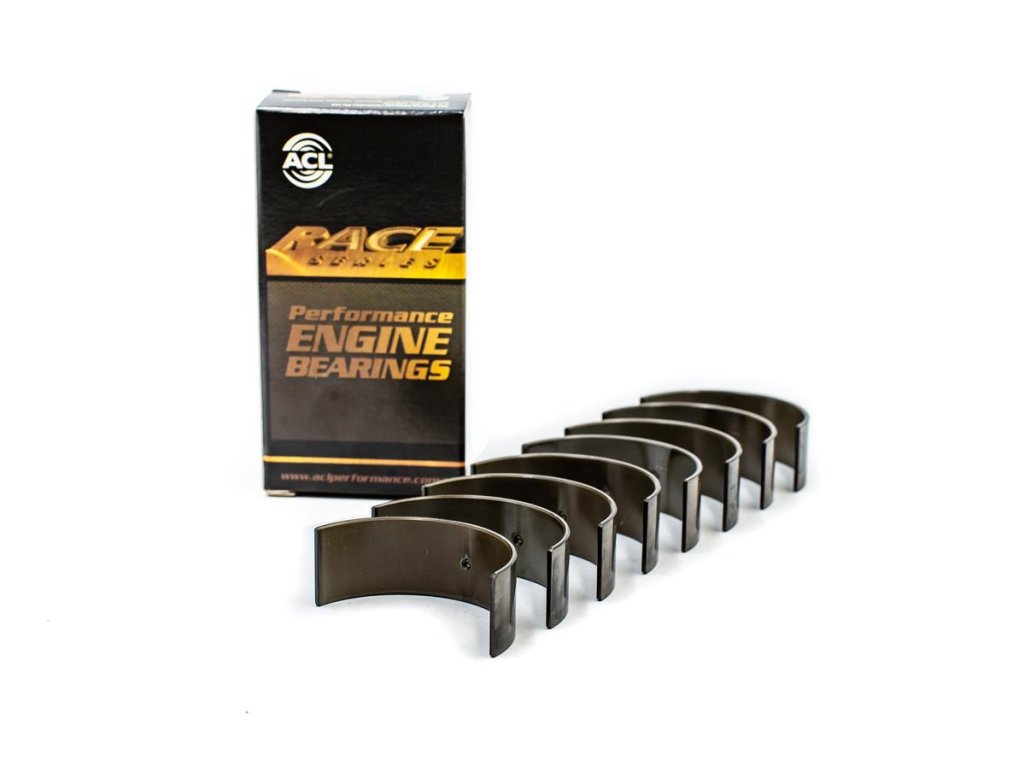

Ojniční ložiska ACL Race Series 4B1609H-.25

Detailní popis produktu

 Ojniční ložiska ACL Race Series 4B1609H-.25



Popis výrobce:

The unique combination of design; metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.

Designed to withstand higher RPM conditions; ACL Race Series Engine Bearings are available for many of the popular 4; 6 & 8 cylinder applications and feature:

• High strength overlay plate with reduced thickness for improved fatigue properties
• Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
• Increased crush for improved bearing retention
• Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
• Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
• 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
• Tight consistent wall tolerances to help you maintain consistent clearances.
• Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.

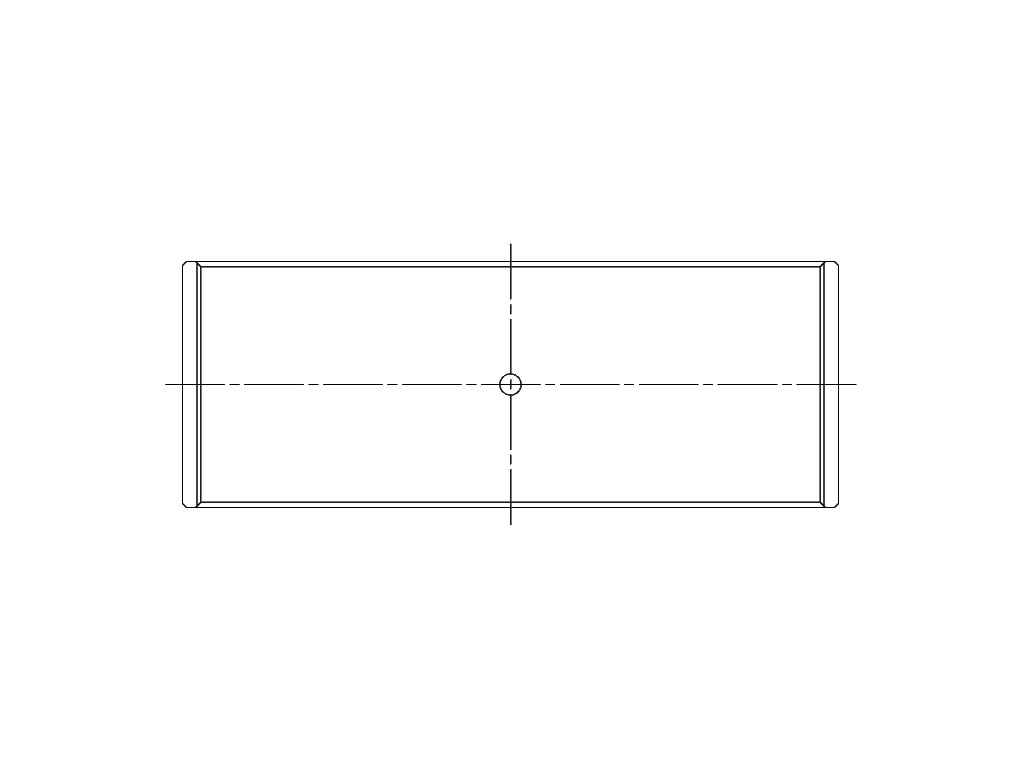

Tunnel [mm]: 50.600 / 50.619, Shaft [mm]: 47.758 / 47.778, Max. Wall: 1.405, Max. Length: 19, Half type: Identical halves, Poznámka: Has one oil hole and no notch.>
Aplikace: Audi/A3 (8L1)/1,8 T quattro/ARX, Audi/A3 (8L1)/1,8 T/AUM, Audi/A3 (8L1)/1,8 T quattro/ARY, Audi/A3 (8L1)/1,8 T/ARY, Audi/A3 (8L1)/1,8 T/AUQ, Audi/A3 (8P1)/2,0 FSI/AXW, Audi/A3 (8P1)/2,0 FSI/BLX, Audi/A3 (8P1)/2,0 FSI/BLY, Audi/A3 (8P1)/2,0 FSI/BMB, Audi/A3 (8P1)/2,0 FSI/BLR, Audi/A3 (8P1)/2,0 FSI/BVY, Audi/A3 (8P1)/2,0 FSI/BVZ, Audi/A3 (8P1)/2,0 TFSI/AXX, Audi/A3 (8P1)/2,0 TFSI/BWA, Audi/A3 (8P1)/2,0 TFSI quattro/AXX, Audi/A3 (8P1)/2,0 TFSI quattro/BWA, Audi/A3 Sportback (8PA)/2,0 FSI/AXW, Audi/A3 Sportback (8PA)/2,0 FSI/BLX, Audi/A3 Sportback (8PA)/2,0 FSI/BLY, Audi/A3 Sportback (8PA)/2,0 FSI/BMB, Audi/A3 Sportback (8PA)/2,0 FSI/BLR, Audi/A3 Sportback (8PA)/2,0 FSI/BVY, Audi/A3 Sportback (8PA)/2,0 FSI/BVZ, Audi/A3 Sportback (8PA)/2,0 TFSI/AXX, Audi/A3 Sportback (8PA)/2,0 TFSI/BWA, Audi/A3 Sportback (8PA)/2,0 TFSI/BPY, Audi/A3 Sportback (8PA)/2,0 TFSI quattro/AXX, Audi/A3 Sportback (8PA)/2,0 TFSI quattro/BWA, Audi/A3 Sportback (8PA)/2,0 TFSI quattro/BPY, Audi/A4 B5 (8D2)/1,8 T quattro/AEB, Audi/A4 B5 (8D2)/1,8 T quattro/ARK, Audi/A4 B5 (8D2)/1,8 T quattro/ANB, Audi/A4 B5 (8D2)/1,8 T quattro/AWT, Audi/A4 B5 (8D2)/1,8 T quattro/ATW, Audi/A4 B5 (8D2)/1,8 T/AEB, Audi/A4 B5 (8D2)/1,8 T/ARK, Audi/A4 B5 (8D2)/1,8 T/ANB, Audi/A4 B5 (8D2)/1,8 T/AWT, Audi/A4 B5 (8D2)/1,8 T/ATW, Audi/A4 B5 Avant (8D5)/1,8 T quattro/AEB, Audi/A4 B5 Avant (8D5)/1,8 T quattro/ARK, Audi/A4 B5 Avant (8D5)/1,8 T quattro/ANB, Audi/A4 B5 Avant (8D5)/1,8 T quattro/AWT, Audi/A4 B5 Avant (8D5)/1,8 T quattro/ATW, Audi/A4 B5 Avant (8D5)/1,8 T/AEB, Audi/A4 B5 Avant (8D5)/1,8 T/ARK, Audi/A4 B5 Avant (8D5)/1,8 T/ANB, Audi/A4 B5 Avant (8D5)/1,8 T/AWT, Audi/A4 B6 (8E2)/1,8 T quattro/AVJ, Audi/A4 B6 (8E2)/1,8 T/AVJ, Audi/A4 B6 (8E2)/1,8 T quattro/AMB, Audi/A4 B6 (8E2)/1,8 T quattro/AWM, Audi/A4 B6 (8E2)/1,8 T quattro/BFB, Audi/A4 B6 (8E2)/1,8 T/BFB, Audi/A4 B6 (8E2)/1,8 T quattro/BEX, Audi/A4 B6 (8E2)/1,8 T/BEX, Audi/A4 B6 (8E2)/2,0/ALT, Audi/A4 B6 (8E2)/2,0 FSI/AWA, Audi/A4 B6 Avant (8E5)/1,8 T/AVJ, Audi/A4 B6 Avant (8E5)/1,8 T quattro/AVJ, Audi/A4 B6 Avant (8E5)/1,8 T quattro/BFB, Audi/A4 B6 Avant (8E5)/1,8 T/BFB, Audi/A4 B6 Avant (8E5)/1,8 T/BEX, Audi/A4 B6 Avant (8E5)/1,8 T quattro/BEX, Audi/A4 B6 Avant (8E5)/2,0/ALT, Audi/A4 B6 Avant (8E5)/2,0 FSI/AWA, Audi/A4 B6 Convertible (8H7)/1,8 T/BFB, Audi/A4 B6 Convertible (8H7)/1,8 T quattro/BFB, Audi/A4 B6 Convertible (8H7)/2,0/ALT, Audi/A4 B7 (8EC)/1,8 T/BFB, Audi/A4 B7 (8EC)/1,8 T quattro/BFB, Audi/A4 B7 (8EC)/2,0 TFSI/BGB, Audi/A4 B7 (8EC)/2,0 TFSI/BWE, Audi/A4 B7 (8EC)/2,0 TFSI/BWT, Audi/A4 B7 (8EC)/2,0 TFSI/BPG, Audi/A4 B7 (8EC)/2,0/ALT, Audi/A4 B7 (8EC)/2,0 TFSI quattro/BGB, Audi/A4 B7 (8EC)/2,0 TFSI quattro/BWE, Audi/A4 B7 (8EC)/2,0 TFSI quattro/BWT, Audi/A4 B7 (8EC)/2,0 TFSI quattro/BPG, Audi/A4 B7 (8EC)/2,0 TFSI/BUL, Audi/A4 B7 (8EC)/2,0 TFSI quattro/BUL, Audi/A4 B7 (8EC)/2,0 TFSI/BPJ, Audi/A4 B7 (8EC)/2,0 TFSI/BYK, Audi/A4 B7 Avant (8ED)/1,8 T quattro/BFB, Audi/A4 B7 Avant (8ED)/1,8 T/BFB, Audi/A4 B7 Avant (8ED)/2,0 TFSI/BGB, Audi/A4 B7 Avant (8ED)/2,0 TFSI/BWE, Audi/A4 B7 Avant (8ED)/2,0 TFSI/BPG, Audi/A4 B7 Avant (8ED)/2,0/ALT, Audi/A4 B7 Avant (8ED)/2,0 TFSI quattro/BGB, Audi/A4 B7 Avant (8ED)/2,0 TFSI quattro/BWE, Audi/A4 B7 Avant (8ED)/2,0 TFSI quattro/BWT, Audi/A4 B7 Avant (8ED)/2,0 TFSI quattro/BPG, Audi/A4 B7 Avant (8ED)/2,0 TFSI/BUL, Audi/A4 B7 Avant (8ED)/2,0 TFSI quattro/BUL, Audi/A4 B7 Avant (8ED)/2,0 TFSI/BPJ, Audi/A4 B7 Avant (8ED)/2,0 TFSI/BYK, Audi/A4 B7 Convertible (8HE)/1,8 T/BFB, Audi/A4 B7 Convertible (8HE)/2,0 TFSI 16V/BWE, Audi/A4 B7 Convertible (8HE)/2,0 TFSI 16V/BWT, Audi/A6 C5 (4B2)/1,8 T/AEB, Audi/A6 C5 (4B2)/1,8 T/ARK, Audi/A6 C5 (4B2)/1,8 T/ANB, Audi/A6 C5 (4B2)/1,8 T/AWT, Audi/A6 C5 (4B2)/1,8 T quattro/AEB, Audi/A6 C5 (4B2)/1,8 T quattro/ARK, Audi/A6 C5 (4B2)/1,8 T quattro/ANB, Audi/A6 C5 (4B2)/1,8 T quattro/AWT, Audi/A6 C5 (4B2)/2,0/ALT, Audi/A6 C5 Avant (4B5)/1,8 T quattro/AEB, Audi/A6 C5 Avant (4B5)/1,8 T quattro/ARK, Audi/A6 C5 Avant (4B5)/1,8 T quattro/ANB, Audi/A6 C5 Avant (4B5)/1,8 T quattro/AWT, Audi/A6 C5 Avant (4B5)/1,8 T/AEB, Audi/A6 C5 Avant (4B5)/1,8 T/ARK, Audi/A6 C5 Avant (4B5)/1,8 T/ANB, Audi/A6 C5 Avant (4B5)/1,8 T/AWT, Audi/A6 C5 Avant (4B5)/2,0/ALT, Audi/A6 C6 (4F2)/2,0 TFSI/BPJ, Audi/A6 C6 (4F2)/2,0 TFSI/BYK, Audi/A6 C6 Avant (4F5)/2,0 TFSI/BPJ, Audi/TT (8J3)/2,0 TFSI/BWA, Audi/TT (8J3)/2,0 TFSI/BPY, Audi/TT (8N3)/1,8 T quattro/ARY, Audi/TT (8N3)/1,8 T quattro/AUQ, Audi/TT (8N3)/1,8 T/AUQ, Audi/TT (8N3)/1,8 T/AWP, Audi/TT (8N3)/1,8 T/AUM, Audi/TT Roadster (8J9)/2,0 TFSI/BWA, Audi/TT Roadster (8J9)/2,0 TFSI/BPY, Audi/TT Roadster (8N9)/1,8 T/AUQ, Audi/TT Roadster (8N9)/1,8 T/AWP, Audi/TT Roadster (8N9)/1,8 T quattro/ARY, Audi/TT Roadster (8N9)/1,8 T quattro/AUQ, Audi/TT Roadster (8N9)/1,8 T/AUM, Seat/ALHAMBRA (7V8; 7V9)/2,0 i/ADY, Seat/ALHAMBRA (7V8; 7V9)/2,0 i/ATM, Seat/ALHAMBRA VAN (7V8; 7V9)/2,0/ADY, Seat/ALHAMBRA VAN (7V8; 7V9)/2,0/ATM, Seat/ALTEA (5P1)/2,0 FSI/BLR, Seat/ALTEA (5P1)/2,0 FSI/BLY, Seat/ALTEA (5P1)/2,0 FSI/BVY, Seat/ALTEA (5P1)/2,0 FSI/BVZ, Seat/ALTEA (5P1)/2,0 TFSI/BWA, Seat/ALTEA XL (5P5; 5P8)/2,0 FSI/BVY, Seat/ALTEA XL (5P5; 5P8)/2,0 FSI/BVZ, Seat/ALTEA XL (5P5; 5P8)/2,0 TFSI/BWA, Seat/ALTEA XL (5P5; 5P8)/2,0 TFSI 4x4/BWA, Seat/CORDOBA (6K1; 6K2)/2,0 i/2E, Seat/CORDOBA (6K1; 6K2)/2,0 i/AGG, Seat/CORDOBA (6L2)/2,0/AZL, Seat/CORDOBA (6L2)/2,0/BBX, Seat/EXEO (3R2)/2,0 TFSI/BWE, Seat/EXEO ST (3R5)/2,0 TFSI/BWE, Seat/IBIZA II (6K1)/2,0 i/2E, Seat/IBIZA II (6K1)/2,0 i/AGG, Seat/IBIZA III (6L1)/1,8 T FR/BJX, Seat/IBIZA III (6L1)/1,8 T FR/BKV, Seat/IBIZA III (6L1)/1,8 T Cupra R/BBU, Seat/IBIZA III (6L1)/1,8 T Cupra R/BLZ, Seat/IBIZA III (6L1)/2,0/AZL, Seat/IBIZA III (6L1)/2,0/BBX, Seat/LEON (1M1)/1,6 16 V/AUS, Seat/LEON (1M1)/1,6 16 V/AZD, Seat/LEON (1M1)/1,6 16 V/BCB, Seat/LEON (1M1)/1,8 20V T 4/ARY, Seat/LEON (1M1)/1,8 20V T/AUQ, Seat/LEON (1P1)/2,0 TFSI/BWA, Seat/LEON (1P1)/2,0 FSI/BLR, Seat/LEON (1P1)/2,0 FSI/BLY, Seat/LEON (1P1)/2,0 FSI/BVY, Seat/LEON (1P1)/2,0 FSI/BVZ, Seat/TOLEDO I (1L2)/2,0 i/2E, Seat/TOLEDO I (1L2)/2,0 i/AGG, Seat/TOLEDO II (1M2)/1,6 16V/AUS, Seat/TOLEDO II (1M2)/1,6 16V/AZD, Seat/TOLEDO II (1M2)/1,6 16V/BCB, Seat/TOLEDO II (1M2)/1,8 20VT/AUQ, Seat/TOLEDO II (1M2)/1,8 20VT/ARY, Seat/TOLEDO III (5P2)/2,0 FSI/BLR, Seat/TOLEDO III (5P2)/2,0 FSI/BLY, Seat/TOLEDO III (5P2)/2,0 FSI/BVY, Seat/TOLEDO III (5P2)/2,0 FSI/BVZ, Seat/TOLEDO III (5P2)/2,0 TFSI/BWA, Skoda/OCTAVIA I (1U2)/1,8 T/ARX, Skoda/OCTAVIA I (1U2)/1,8 T/AUM, Skoda/OCTAVIA I (1U2)/RS 1,8 T/AUQ, Skoda/OCTAVIA I (1U2)/1,8 T 4x4/ARX, Skoda/OCTAVIA I (1U2)/2,0/AQY, Skoda/OCTAVIA I (1U2)/2,0/APK, Skoda/OCTAVIA I (1U2)/2,0/AZH, Skoda/OCTAVIA I (1U2)/2,0/AEG, Skoda/OCTAVIA I (1U2)/2,0/AZJ, Skoda/OCTAVIA I Combi (1U5)/1,8 T/ARX, Skoda/OCTAVIA I Combi (1U5)/1,8 T/AUM, Skoda/OCTAVIA I Combi (1U5)/1,8 T 4x4/ARX, Skoda/OCTAVIA I Combi (1U5)/RS 1,8 T/AUQ, Skoda/OCTAVIA I Combi (1U5)/2,0/AQY, Skoda/OCTAVIA I Combi (1U5)/2,0/APK, Skoda/OCTAVIA I Combi (1U5)/2,0/AZH, Skoda/OCTAVIA I Combi (1U5)/2,0/AEG, Skoda/OCTAVIA I Combi (1U5)/2,0/AZJ, Skoda/OCTAVIA I Combi (1U5)/2,0 4x4/AZH, Skoda/OCTAVIA I Combi (1U5)/2,0 4x4/AZJ, Skoda/OCTAVIA II (1Z3)/2,0 FSI/BLY, Skoda/OCTAVIA II (1Z3)/2,0 FSI/BLR, Skoda/OCTAVIA II (1Z3)/2,0 FSI/BVY, Skoda/OCTAVIA II (1Z3)/2,0 FSI/BVZ, Skoda/OCTAVIA II (1Z3)/2,0 TFSI/BWA, Skoda/OCTAVIA II Combi (1Z5)/2,0 FSI/BLY, Skoda/OCTAVIA II Combi (1Z5)/2,0 FSI/BLR, Skoda/OCTAVIA II Combi (1Z5)/2,0 FSI/BVY, Skoda/OCTAVIA II Combi (1Z5)/2,0 FSI/BVZ, Skoda/OCTAVIA II Combi (1Z5)/2,0 FSI 4x4/BLY, Skoda/OCTAVIA II Combi (1Z5)/2,0 FSI 4x4/BLX, Skoda/OCTAVIA II Combi (1Z5)/2,0 FSI 4x4/BVX, Skoda/OCTAVIA II Combi (1Z5)/2,0 TFSI/BWA, Skoda/SUPERB I (3U4)/1,8 T/AWT, Skoda/SUPERB I (3U4)/2,0/AZM, Volkswagen/BORA (9M2)/2,0/BER, Volkswagen/BORA (9M2)/2,0/BEV, Volkswagen/BORA (9M2)/2,0/BHP, Volkswagen/BORA (9M2)/2,0/CBPA, Volkswagen/BORA (9M2)/2,0/CFEA, Volkswagen/BORA I (1J2)/1,6 16V/ATN, Volkswagen/BORA I (1J2)/1,6 16V/AUS, Volkswagen/BORA I (1J2)/1,6 16V/AZD, Volkswagen/BORA I (1J2)/1,6 16V/BCB, Volkswagen/BORA I (1J2)/1,8 T/ARX, Volkswagen/BORA I (1J2)/1,8 T/AUM, Volkswagen/BORA I (1J2)/1,8 T/AWW, Volkswagen/BORA I (1J2)/1,8 T/AWD, Volkswagen/BORA I (1J2)/1,8 T/AUQ, Volkswagen/BORA I (1J2)/1,8 T/AWP, Volkswagen/BORA I (1J2)/2,0/AQY, Volkswagen/BORA I (1J2)/2,0/APK, Volkswagen/BORA I (1J2)/2,0/AEG, Volkswagen/BORA I (1J2)/2,0/AZG, Volkswagen/BORA I (1J2)/2,0/AZH, Volkswagen/BORA I (1J2)/2,0/AZJ, Volkswagen/BORA I (1J2)/2,0/BER, Volkswagen/BORA I (1J2)/2,0/BEV, Volkswagen/BORA I (1J2)/2,0/AVH, Volkswagen/BORA I (1J2)/2,0/BHP, Volkswagen/BORA I (1J2)/2,0/CBPA, Volkswagen/BORA I (1J2)/2,0/BBW, Volkswagen/BORA I (1J2)/2,0/CFEA, Volkswagen/BORA I (1J2)/2,0 4motion/AZH, Volkswagen/BORA I (1J2)/2,0 4motion/AZJ, Volkswagen/BORA Variant (1J6)/1,6 16V/ATN, Volkswagen/BORA Variant (1J6)/1,6 16V/AUS, Volkswagen/BORA Variant (1J6)/1,6 16V/AZD, Volkswagen/BORA Variant (1J6)/1,6 16V/BCB, Volkswagen/BORA Variant (1J6)/1,8 T/ARX, Volkswagen/BORA Variant (1J6)/1,8 T/AUM, Volkswagen/BORA Variant (1J6)/1,8 T/AWW, Volkswagen/BORA Variant (1J6)/1,8 T/AWD, Volkswagen/BORA Variant (1J6)/1,8 T/AUQ, Volkswagen/BORA Variant (1J6)/1,8 T/AWP, Volkswagen/BORA Variant (1J6)/2,0/AQY, Volkswagen/BORA Variant (1J6)/2,0/APK, Volkswagen/BORA Variant (1J6)/2,0/AZG, Volkswagen/BORA Variant (1J6)/2,0/AZJ, Volkswagen/BORA Variant (1J6)/2,0/BEV, Volkswagen/BORA Variant (1J6)/2,0/AVH, Volkswagen/BORA Variant (1J6)/2,0 4motion/AZH, Volkswagen/BORA Variant (1J6)/2,0 4motion/AZJ, Volkswagen/CADDY III (2KA; 2KH; 2CA; 2CH)/2,0 EcoFuel/BSX, Volkswagen/CADDY III (MPV) (2KB; 2KJ; 2CB;/2,0 EcoFuel/BSX, Volkswagen/EOS (1F7; 1F8)/2,0 FSI/BVY, Volkswagen/EOS (1F7; 1F8)/2,0 FSI/BVZ, Volkswagen/EOS (1F7; 1F8)/2,0 TFSI/BWA, Volkswagen/EOS (1F7; 1F8)/2,0 TFSI/BPY, Volkswagen/GOLF IV (1J1)/1,6 16V/ATN, Volkswagen/GOLF IV (1J1)/1,6 16V/AUS, Volkswagen/GOLF IV (1J1)/1,6 16V/AZD, Volkswagen/GOLF IV (1J1)/1,6 16V/BCB, Volkswagen/GOLF IV (1J1)/1,8 T/AUM, Volkswagen/GOLF IV (1J1)/1,8 T/AWW, Volkswagen/GOLF IV (1J1)/1,8 T/AWD, Volkswagen/GOLF IV (1J1)/1,8 T GTI/AUQ, Volkswagen/GOLF IV (1J1)/1,8 T GTI/AWP, Volkswagen/GOLF IV (1J1)/1,8 T GTI/BEK, Volkswagen/GOLF IV (1J1)/2,0/AQY, Volkswagen/GOLF IV (1J1)/2,0/APK, Volkswagen/GOLF IV (1J1)/2,0/AEG, Volkswagen/GOLF IV (1J1)/2,0/AZG, Volkswagen/GOLF IV (1J1)/2,0/AZJ, Volkswagen/GOLF IV (1J1)/2,0/BER, Volkswagen/GOLF IV (1J1)/2,0/BEV, Volkswagen/GOLF IV (1J1)/2,0/AVH, Volkswagen/GOLF IV (1J1)/2,0/BEJ, Volkswagen/GOLF IV (1J1)/2,0/BHP, Volkswagen/GOLF IV (1J1)/2,0 4motion/AZH, Volkswagen/GOLF IV (1J1)/2,0 4motion/AZJ, Volkswagen/GOLF IV (1J1)/2,0 BiFuel/BEH, Volkswagen/GOLF IV Variant (1J5)/1,6 16V/ATN, Volkswagen/GOLF IV Variant (1J5)/1,6 16V/AUS, Volkswagen/GOLF IV Variant (1J5)/1,6 16V/AZD, Volkswagen/GOLF IV Variant (1J5)/1,6 16V/BCB, Volkswagen/GOLF IV Variant (1J5)/1,8 T/AUM, Volkswagen/GOLF IV Variant (1J5)/2,0/AQY, Volkswagen/GOLF IV Variant (1J5)/2,0/APK, Volkswagen/GOLF IV Variant (1J5)/2,0/AZJ, Volkswagen/GOLF IV Variant (1J5)/2,0 4motion/AZH, Volkswagen/GOLF IV Variant (1J5)/2,0 4motion/AZJ, Volkswagen/GOLF IV Variant (1J5)/2,0 Bi-Fuel/BEH, Volkswagen/GOLF PLUS V (5M1; 521)/2,0 FSI/BLY, Volkswagen/GOLF PLUS V (5M1; 521)/2,0 FSI/BLR, Volkswagen/GOLF PLUS V (5M1; 521)/2,0 FSI/BVY, Volkswagen/GOLF PLUS V (5M1; 521)/2,0 FSI/BVZ, Volkswagen/GOLF V (1K1)/2,0 FSI/AXW, Volkswagen/GOLF V (1K1)/2,0 FSI/BLX, Volkswagen/GOLF V (1K1)/2,0 FSI/BLY, Volkswagen/GOLF V (1K1)/2,0 FSI/BLR, Volkswagen/GOLF V (1K1)/2,0 FSI/BVY, Volkswagen/GOLF V (1K1)/2,0 FSI/BVZ, Volkswagen/GOLF V (1K1)/2,0 FSI/BVX, Volkswagen/GOLF V (1K1)/2,0 FSI 4motion/BLX, Volkswagen/GOLF V (1K1)/2,0 FSI 4motion/BVX, Volkswagen/GOLF V (1K1)/2,0 GTI/AXX, Volkswagen/GOLF V (1K1)/2,0 GTI/BWA, Volkswagen/GOLF V (1K1)/2,0 GTI/BPY, Volkswagen/GOLF V (1K1)/2,0/BEV, Volkswagen/GOLF V (1K1)/2,0/BHY, Volkswagen/GOLF V Variant (1K5)/2,0 TFSI/BWA, Volkswagen/GOLF VAN IV Variant (1J5)/1,6/AUS, Volkswagen/GOLF VAN IV Variant (1J5)/1,6/AZD, Volkswagen/GOLF VAN IV Variant (1J5)/1,6/BCB, Volkswagen/JETTA III (1K2)/2,0 FSI/BLX, Volkswagen/JETTA III (1K2)/2,0 FSI/BLY, Volkswagen/JETTA III (1K2)/2,0 FSI/BLR, Volkswagen/JETTA III (1K2)/2,0 FSI/BVY, Volkswagen/JETTA III (1K2)/2,0 FSI/BVZ, Volkswagen/JETTA III (1K2)/2,0 TFSI/AXX, Volkswagen/JETTA III (1K2)/2,0 TFSI/BWA, Volkswagen/JETTA III (1K2)/2,0 TFSI/BPY, Volkswagen/JETTA IV (162; 163; AV3; AV2)/2,0/CBPA, Volkswagen/JETTA IV (162; 163; AV3; AV2)/2,0/CKJA, Volkswagen/LUPO I (6X1; 6E1)/1,6 GTI/AVY, Volkswagen/MULTIVAN V (7HM; 7HN; 7HF; 7EF; 7EM; 7EN)/2,0/AXA, Volkswagen/NEW BEETLE (9C1; 1C1)/1,8 T/APH, Volkswagen/NEW BEETLE (9C1; 1C1)/1,8 T/AVC, Volkswagen/NEW BEETLE (9C1; 1C1)/1,8 T/AWU, Volkswagen/NEW BEETLE (9C1; 1C1)/1,8 T/AWV, Volkswagen/NEW BEETLE (9C1; 1C1)/1,8 T/BKF, Volkswagen/NEW BEETLE (9C1; 1C1)/2,0/AQY, Volkswagen/NEW BEETLE (9C1; 1C1)/2,0/APK, Volkswagen/NEW BEETLE (9C1; 1C1)/2,0/AEG, Volkswagen/NEW BEETLE (9C1; 1C1)/2,0/AZG, Volkswagen/NEW BEETLE (9C1; 1C1)/2,0/AZJ, Volkswagen/NEW BEETLE (9C1; 1C1)/2,0/BER, Volkswagen/NEW BEETLE (9C1; 1C1)/2,0/BEV, Volkswagen/NEW BEETLE (9C1; 1C1)/2,0/AVH, Volkswagen/NEW BEETLE (9C1; 1C1)/2,0/BEJ, Volkswagen/NEW BEETLE (9C1; 1C1)/2,0/BHP, Volkswagen/NEW BEETLE (9C1; 1C1)/2,0/CBPA, Volkswagen/NEW BEETLE Convertible (1Y7)/1,8 T/AWU, Volkswagen/NEW BEETLE Convertible (1Y7)/1,8 T/AWV, Volkswagen/NEW BEETLE Convertible (1Y7)/1,8 T/BKF, Volkswagen/NEW BEETLE Convertible (1Y7)/2,0/AZJ, Volkswagen/NEW BEETLE Convertible (1Y7)/2,0/BDC, Volkswagen/NEW BEETLE Convertible (1Y7)/2,0/BGD, Volkswagen/NEW BEETLE Convertible (1Y7)/2,0/BEV, Volkswagen/PASSAT B5,5 (3B3)/1,8 T 20V/AWT, Volkswagen/PASSAT B5,5 (3B3)/2,0/AZM, Volkswagen/PASSAT B5,5 (3B3)/2,0 4motion/AZM, Volkswagen/PASSAT B5,5 (3B3)/2,0/ALT, Volkswagen/PASSAT B5,5 Variant (3B6)/1,8 T 20V/AWT, Volkswagen/PASSAT B5,5 Variant (3B6)/2,0/AZM, Volkswagen/PASSAT B5,5 Variant (3B6)/2,0 4motion/AZM, Volkswagen/PASSAT B5,5 Variant (3B6)/2,0/ALT, Volkswagen/PASSAT B6 (3C2)/2,0 FSI/BLY, Volkswagen/PASSAT B6 (3C2)/2,0 FSI/BLR, Volkswagen/PASSAT B6 (3C2)/2,0 FSI/BVY, Volkswagen/PASSAT B6 (3C2)/2,0 FSI/BVZ, Volkswagen/PASSAT B6 (3C2)/2,0 TFSI/AXX, Volkswagen/PASSAT B6 (3C2)/2,0 TFSI/BWA, Volkswagen/PASSAT B6 (3C2)/2,0 TFSI/BPY, Volkswagen/PASSAT B6 (3C2)/2,0 FSI 4motion/BLX, Volkswagen/PASSAT B6 (3C2)/2,0 FSI 4motion/BLY, Volkswagen/PASSAT B6 (3C2)/2,0 FSI 4motion/BVX, Volkswagen/PASSAT B6 Variant (3C5)/2,0 FSI/BLY, Volkswagen/PASSAT B6 Variant (3C5)/2,0 FSI/BLR, Volkswagen/PASSAT B6 Variant (3C5)/2,0 FSI/BVY, Volkswagen/PASSAT B6 Variant (3C5)/2,0 FSI/BVZ, Volkswagen/PASSAT B6 Variant (3C5)/2,0 TFSI/AXX, Volkswagen/PASSAT B6 Variant (3C5)/2,0 TFSI/BWA, Volkswagen/PASSAT B6 Variant (3C5)/2,0 TFSI/BPY, Volkswagen/PASSAT B6 Variant (3C5)/2,0 FSI 4motion/BLX, Volkswagen/PASSAT B6 Variant (3C5)/2,0 FSI 4motion/BLY, Volkswagen/PASSAT B6 Variant (3C5)/2,0 FSI 4motion/BVX, Volkswagen/POLO (6N2)/1,6 16V GTI/ARC, Volkswagen/POLO (6N2)/1,6 16V GTI/AVY, Volkswagen/POLO (9N_; 9A_)/1,8 GTI/BJX, Volkswagen/POLO (9N_; 9A_)/1,8 GTi Cup Edition/BBU, Volkswagen/TOURAN (1T1; 1T2)/2,0 FSI/AXW, Volkswagen/TOURAN (1T1; 1T2)/2,0 FSI/BLX, Volkswagen/TOURAN (1T1; 1T2)/2,0 FSI/BLY, Volkswagen/TOURAN (1T1; 1T2)/2,0 FSI/BLR, Volkswagen/TOURAN (1T1; 1T2)/2,0 FSI/BVY, Volkswagen/TOURAN (1T1; 1T2)/2,0 FSI/BVZ, Volkswagen/TOURAN (1T1; 1T2)/2,0 EcoFuel/BSX, Volkswagen/TOURAN VAN (1T1; 1T2)/2,0 FSI/BLX, Volkswagen/TOURAN VAN (1T1; 1T2)/2,0 FSI/BLY, Volkswagen/TOURAN VAN (1T1; 1T2)/2,0 FSI/BLR, Volkswagen/TOURAN VAN (1T1; 1T2)/2,0 FSI/BVY, Volkswagen/TOURAN VAN (1T1; 1T2)/2,0 FSI/BVZ, Volkswagen/TOURAN VAN (1T1; 1T2)/2,0 EcoFuel/BSX, Volkswagen/TRANSPORTER V Autobus (7HB; 7HJ; 7EB; 7EJ)/2,0/AXA, Volkswagen/TRANSPORTER V (7JD; 7JE; 7JL; 7JY; 7JZ;/2,0 CNG/AXA, Volkswagen/TRANSPORTER V (7JD; 7JE; 7JL; 7JY; 7JZ;/2,0/AXA, Volkswagen/TRANSPORTER V (7HA; 7HH; 7EA; 7EH)/2,0/AXA, Volkswagen/TRANSPORTER V (7HA; 7HH; 7EA; 7EH)/2,0 BiFuel/AXA



APLIKAČNÍ KATALOG ACL

Obrázek je pouze ilustrační.

ACL je australská společnost s více než 70letou tradicí výroby přesných ložisek motorů, sídlící v Launcestonu, Tasmánie. Firma je významným dodavatelem OEM ložisek pro automobilový průmysl a zároveň nabízí rozsáhlý sortiment náhradních dílů pro globální aftermarket. Její produkty jsou známé svou vysokou kvalitou, precizností, robustní metalurgií a výkonem.

ACL má bohatou historii v motorsportu, sahající až do 60. let, kdy vyráběla ložiska pro tým Brabham ve Formuli 1. Její RACE Series Performance Engine Bearings si našly uplatnění v závodech jako australské Supercars, drag racing, rally a drift. Díky tomu jsou často první volbou pro motorové specialisty po celém světě.

Společnost nabízí jednu z největších nabídek ložisek motorů na aftermarketu, pokrývající přes 200 aplikací pro australské, americké, japonské, korejské a evropské vozy. Sortiment se neustále rozšiřuje o nově uvedené motory.

ACL disponuje vysokou úrovní vertikální integrace, zahrnující návrh a výrobu materiálů, nástrojů a složitých výrobních procesů. Firma se pyšní certifikacemi ISO9001:2015 (kvalita), ISO14001:2015 (ekologie) a ISO451001:2018 (bezpečnost práce).

Díky této kombinaci tradice, inovace a zaměření na výkon si ACL vybudovalo celosvětovou reputaci v oblasti motorových ložisek.
