Ojniční ložiska ACL Race Series 4B1606H-.25

Detailní popis produktu

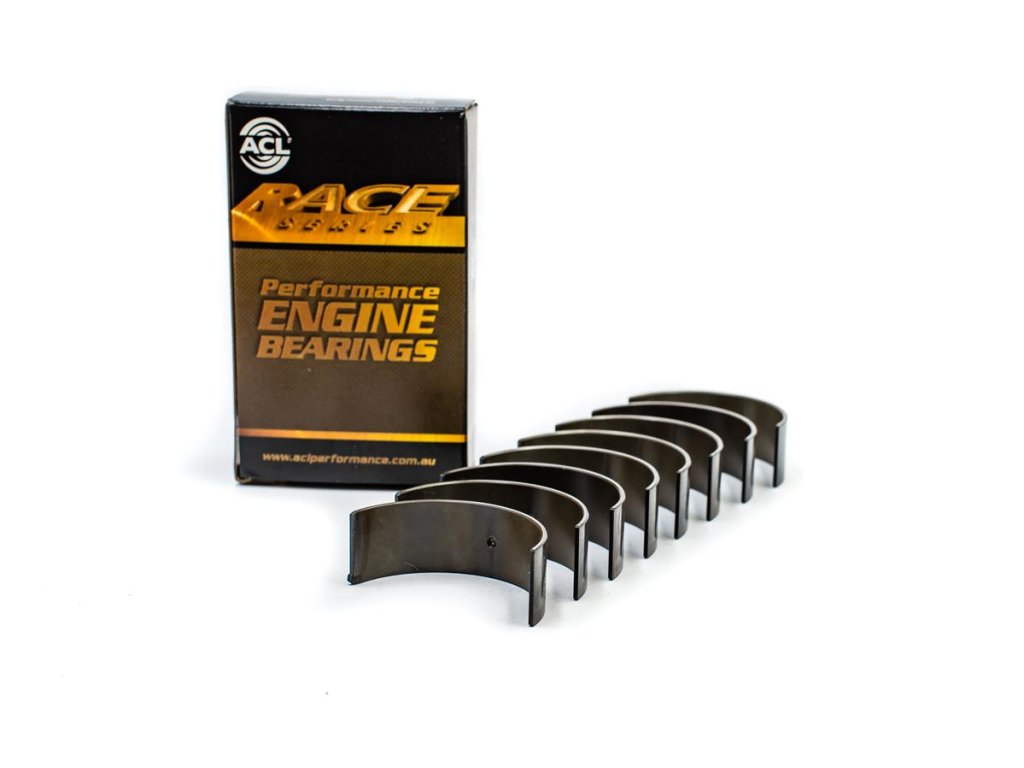

 Ojniční ložiska ACL Race Series 4B1606H-.25



Popis výrobce:

The unique combination of design; metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.

Designed to withstand higher RPM conditions; ACL Race Series Engine Bearings are available for many of the popular 4; 6 & 8 cylinder applications and feature:

• High strength overlay plate with reduced thickness for improved fatigue properties
• Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
• Increased crush for improved bearing retention
• Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
• Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
• 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
• Tight consistent wall tolerances to help you maintain consistent clearances.
• Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.



Tunnel [mm]: 50.600 / 50.619, Shaft [mm]: 47.758 / 47.778, Max. Wall: 1.405, Max. Length: 19, Half type: Identical halves, Poznámka: Has one oil hole.>
Aplikace: Aro/10/1,6/HN, Audi/100 C3 Avant (445; 446)/1,8/DR, Audi/100 C3 Avant (445; 446)/1,8/RS, Audi/100 C3 Avant (445; 446)/1,8/DS, Audi/100 C3 Avant (445; 446)/1,8/JW, Audi/100 C3 Avant (445; 446)/1,8/NP, Audi/100 C3 Avant (445; 446)/1,8/SH, Audi/100 C3 Avant (445; 446)/1,8 quattro/JW, Audi/100 C3 Avant (445; 446)/1,8 quattro/NP, Audi/100 C3 Avant (445; 446)/1,8 Cat/4B, Audi/100 C3 Avant (445; 446)/1,8 Cat/PH, Audi/100 C3 Avant (445; 446)/1,8 Cat quattro/4B, Audi/100 C3 Avant (445; 446)/1,8 Cat quattro/PH, Audi/100 C3 Avant (445; 446)/1,8 quattro/SH, Audi/100 C3 sedan (443; 444)/1,8/DR, Audi/100 C3 sedan (443; 444)/1,8/RS, Audi/100 C3 sedan (443; 444)/1,8/DS, Audi/100 C3 sedan (443; 444)/1,8/JW, Audi/100 C3 sedan (443; 444)/1,8/NP, Audi/100 C3 sedan (443; 444)/1,8/SH, Audi/100 C3 sedan (443; 444)/1,8 quattro/JW, Audi/100 C3 sedan (443; 444)/1,8 quattro/NP, Audi/100 C3 sedan (443; 444)/1,8 Cat/4B, Audi/100 C3 sedan (443; 444)/1,8 Cat/PH, Audi/100 C3 sedan (443; 444)/1,8 Cat quattro/4B, Audi/100 C3 sedan (443; 444)/1,8 Cat quattro/PH, Audi/100 C3 sedan (443; 444)/1,8 quattro/SH, Audi/100 C4 Avant (4A5)/2,0 E quattro/AAD, Audi/100 C4 Avant (4A5)/2,0 E/AAE, Audi/100 C4 Avant (4A5)/2,0 E/AAD, Audi/100 C4 Avant (4A5)/2,0 E/ABK, Audi/100 C4 Avant (4A5)/2,0 E 16V/ACE, Audi/100 C4 Avant (4A5)/2,0 E 16V quattro/ACE, Audi/100 C4 sedan (4A2)/2,0 E quattro/AAD, Audi/100 C4 sedan (4A2)/2,0 E/AAD, Audi/100 C4 sedan (4A2)/2,0 E/ABK, Audi/100 C4 sedan (4A2)/2,0/AAE, Audi/100 C4 sedan (4A2)/2,0 E 16V/ACE, Audi/100 C4 sedan (4A2)/2,0 E 16V quattro/ACE, Audi/80 B2 sedan (811; 813; 814; 819; 853)/1,6/JU, Audi/80 B2 sedan (811; 813; 814; 819; 853)/1,6/DT, Audi/80 B2 sedan (811; 813; 814; 819; 853)/1,6/SA, Audi/80 B2 sedan (811; 813; 814; 819; 853)/1,8/DS, Audi/80 B2 sedan (811; 813; 814; 819; 853)/1,8/JV, Audi/80 B2 sedan (811; 813; 814; 819; 853)/1,8/JN, Audi/80 B2 sedan (811; 813; 814; 819; 853)/1,8 GTE quattro (85Q)/DZ, Audi/80 B2 sedan (811; 813; 814; 819; 853)/1,8 CC quattro (85Q)/JV, Audi/80 B2 sedan (811; 813; 814; 819; 853)/1,8 CC quattro (85Q)/JN, Audi/80 B2 sedan (811; 813; 814; 819; 853)/1,8 CC quattro (85Q)/NE, Audi/80 B2 sedan (811; 813; 814; 819; 853)/1,8 GTE/DZ, Audi/80 B2 sedan (811; 813; 814; 819; 853)/1,8 GTE/MU, Audi/80 B2 sedan (811; 813; 814; 819; 853)/1,8 GTE quattro (85Q)/PV, Audi/80 B2 sedan (811; 813; 814; 819; 853)/1,8 GTE/PV, Audi/80 B2 sedan (811; 813; 814; 819; 853)/1,8/SF, Audi/80 B3 sedan (893; 894; 8A2)/1,6/RN, Audi/80 B3 sedan (893; 894; 8A2)/1,6/PP, Audi/80 B3 sedan (893; 894; 8A2)/1,6/ABB, Audi/80 B3 sedan (893; 894; 8A2)/1,8 E/DZ, Audi/80 B3 sedan (893; 894; 8A2)/1,8 S/SF, Audi/80 B3 sedan (893; 894; 8A2)/1,8 S quattro/SF, Audi/80 B3 sedan (893; 894; 8A2)/1,8 E quattro/DZ, Audi/80 B3 sedan (893; 894; 8A2)/1,8 S quattro/PM, Audi/80 B3 sedan (893; 894; 8A2)/1,8 S quattro/JN, Audi/80 B3 sedan (893; 894; 8A2)/1,8 S quattro/NE, Audi/80 B3 sedan (893; 894; 8A2)/1,8 S/JV, Audi/80 B3 sedan (893; 894; 8A2)/1,8 S/PM, Audi/80 B3 sedan (893; 894; 8A2)/1,8 S/JN, Audi/80 B3 sedan (893; 894; 8A2)/1,8 S/NE, Audi/80 B3 sedan (893; 894; 8A2)/1,8/RU, Audi/80 B3 sedan (893; 894; 8A2)/1,8/SD, Audi/80 B3 sedan (893; 894; 8A2)/1,8 quattro/SD, Audi/80 B3 sedan (893; 894; 8A2)/1,9/SD, Audi/80 B3 sedan (893; 894; 8A2)/1,9 quattro/SD, Audi/80 B3 sedan (893; 894; 8A2)/2,0 E quattro/3A, Audi/80 B3 sedan (893; 894; 8A2)/2,0 E/3A, Audi/80 B3 sedan (893; 894; 8A2)/2,0 E 16V quattro/6A, Audi/80 B3 sedan (893; 894; 8A2)/2,0 E 16V/6A, Audi/80 B3 sedan (893; 894; 8A2)/2,0 quattro/AAD, Audi/80 B4 Avant (8C5)/1,6 E/ADA, Audi/80 B4 Avant (8C5)/2,0/ABT, Audi/80 B4 Avant (8C5)/2,0 E/ABK, Audi/80 B4 Avant (8C5)/2,0 E 16V quattro/ACE, Audi/80 B4 Avant (8C5)/2,0 E 16V/ACE, Audi/80 B4 Avant (8C5)/2,0 quattro/ADW, Audi/80 B4 sedan (8C2)/1,6/ABM, Audi/80 B4 sedan (8C2)/1,6 E/ADA, Audi/80 B4 sedan (8C2)/2,0 E 16V/6A, Audi/80 B4 sedan (8C2)/2,0/ABT, Audi/80 B4 sedan (8C2)/2,0 E quattro/ABK, Audi/80 B4 sedan (8C2)/2,0 E/ABK, Audi/80 B4 sedan (8C2)/2,0 E 16V quattro/ACE, Audi/80 B4 sedan (8C2)/2,0 E 16V/ACE, Audi/80 B4 sedan (8C2)/2,0 quattro/ADW, Audi/90 B3 (893; 894; 8A2)/1,8 E/DZ, Audi/90 B3 (893; 894; 8A2)/2,0 quattro/6A, Audi/A3 (8L1)/1,8/AGN, Audi/A3 (8L1)/1,8/APG, Audi/A4 B5 (8D2)/1,6/ADP, Audi/A4 B5 (8D2)/1,6/AHL, Audi/A4 B5 (8D2)/1,6/ANA, Audi/A4 B5 (8D2)/1,6/ARM, Audi/A4 B5 (8D2)/1,8/ADR, Audi/A4 B5 (8D2)/1,8/APT, Audi/A4 B5 (8D2)/1,8/ARG, Audi/A4 B5 (8D2)/1,8/AVV, Audi/A4 B5 (8D2)/1,8 quattro/ADR, Audi/A4 B5 (8D2)/1,8 quattro/APT, Audi/A4 B5 (8D2)/1,8 quattro/ARG, Audi/A4 B5 (8D2)/1,8 T/AEB, Audi/A4 B5 (8D2)/1,8 T/ARK, Audi/A4 B5 (8D2)/1,8 T/ANB, Audi/A4 B5 (8D2)/1,8 T/AWT, Audi/A4 B5 (8D2)/1,8 T/ATW, Audi/A4 B5 (8D2)/1,8 T quattro/AEB, Audi/A4 B5 (8D2)/1,8 T quattro/ARK, Audi/A4 B5 (8D2)/1,8 T quattro/ANB, Audi/A4 B5 (8D2)/1,8 T quattro/AWT, Audi/A4 B5 (8D2)/1,8 T quattro/ATW, Audi/A4 B5 (8D2)/1,8/AFY, Audi/A4 B5 (8D2)/1,8 quattro/AFY, Audi/A4 B5 (8D2)/1,8 T/AJL, Audi/A4 B5 (8D2)/1,8 T quattro/AJL, Audi/A4 B5 Avant (8D5)/1,6/ADP, Audi/A4 B5 Avant (8D5)/1,6/AHL, Audi/A4 B5 Avant (8D5)/1,6/ANA, Audi/A4 B5 Avant (8D5)/1,6/ARM, Audi/A4 B5 Avant (8D5)/1,8 quattro/AFY, Audi/A4 B5 Avant (8D5)/1,8/AFY, Audi/A4 B5 Avant (8D5)/1,8 quattro/ADR, Audi/A4 B5 Avant (8D5)/1,8 quattro/APT, Audi/A4 B5 Avant (8D5)/1,8 quattro/ARG, Audi/A4 B5 Avant (8D5)/1,8 T quattro/AEB, Audi/A4 B5 Avant (8D5)/1,8 T quattro/ARK, Audi/A4 B5 Avant (8D5)/1,8 T quattro/ANB, Audi/A4 B5 Avant (8D5)/1,8 T quattro/AWT, Audi/A4 B5 Avant (8D5)/1,8 T quattro/ATW, Audi/A4 B5 Avant (8D5)/1,8/ADR, Audi/A4 B5 Avant (8D5)/1,8/APT, Audi/A4 B5 Avant (8D5)/1,8/ARG, Audi/A4 B5 Avant (8D5)/1,8/AVV, Audi/A4 B5 Avant (8D5)/1,8 T/AEB, Audi/A4 B5 Avant (8D5)/1,8 T/ARK, Audi/A4 B5 Avant (8D5)/1,8 T/ANB, Audi/A4 B5 Avant (8D5)/1,8 T/AWT, Audi/A4 B5 Avant (8D5)/1,8 T/AJL, Audi/A4 B5 Avant (8D5)/1,8 T quattro/AJL, Audi/A6 C4 (4A2)/1,8/ADR, Audi/A6 C4 (4A2)/1,8 quattro/ADR, Audi/A6 C4 (4A2)/2,0/ADW, Audi/A6 C4 (4A2)/2,0/ABK, Audi/A6 C4 (4A2)/2,0 16V quattro/ACE, Audi/A6 C4 (4A2)/2,0/AAE, Audi/A6 C4 (4A2)/2,0 16V/ACE, Audi/A6 C4 Avant (4A5)/1,8/ADR, Audi/A6 C4 Avant (4A5)/1,8 quattro/ADR, Audi/A6 C4 Avant (4A5)/2,0/ADW, Audi/A6 C4 Avant (4A5)/2,0/AAE, Audi/A6 C4 Avant (4A5)/2,0 16V/ACE, Audi/A6 C4 Avant (4A5)/2,0 16V quattro/ACE, Audi/A6 C4 Avant (4A5)/2,0/ABK, Audi/A6 C5 (4B2)/1,8 T/AEB, Audi/A6 C5 (4B2)/1,8 T/ARK, Audi/A6 C5 (4B2)/1,8 T/ANB, Audi/A6 C5 (4B2)/1,8 T/AWT, Audi/A6 C5 (4B2)/1,8 T quattro/AEB, Audi/A6 C5 (4B2)/1,8 T quattro/ARK, Audi/A6 C5 (4B2)/1,8 T quattro/ANB, Audi/A6 C5 (4B2)/1,8 T quattro/AWT, Audi/A6 C5 (4B2)/1,8/AFY, Audi/A6 C5 (4B2)/1,8/AJP, Audi/A6 C5 (4B2)/1,8/AQE, Audi/A6 C5 (4B2)/1,8/ARH, Audi/A6 C5 (4B2)/1,8 T/AJL, Audi/A6 C5 (4B2)/1,8 T quattro/AJL, Audi/A6 C5 Avant (4B5)/1,8/AJP, Audi/A6 C5 Avant (4B5)/1,8/AQE, Audi/A6 C5 Avant (4B5)/1,8/ARH, Audi/A6 C5 Avant (4B5)/1,8 T quattro/AJL, Audi/A6 C5 Avant (4B5)/1,8 T quattro/AEB, Audi/A6 C5 Avant (4B5)/1,8 T quattro/ARK, Audi/A6 C5 Avant (4B5)/1,8 T quattro/ANB, Audi/A6 C5 Avant (4B5)/1,8 T quattro/AWT, Audi/A6 C5 Avant (4B5)/1,8 T/AEB, Audi/A6 C5 Avant (4B5)/1,8 T/ARK, Audi/A6 C5 Avant (4B5)/1,8 T/ANB, Audi/A6 C5 Avant (4B5)/1,8 T/AWT, Audi/A6 C5 Avant (4B5)/1,8/AFY, Audi/A6 C5 Avant (4B5)/1,8 T/AJL, Audi/CABRIOLET B3 (8G7)/1,8/ADR, Audi/CABRIOLET B3 (8G7)/2,0 E/ABK, Audi/COUPE B2 (81; 855; 856)/1,8 GT/DS, Audi/COUPE B2 (81; 855; 856)/1,8 GT/JV, Audi/COUPE B2 (81; 855; 856)/1,8 GT/JN, Audi/COUPE B2 (81; 855; 856)/1,8 GT quattro/DZ, Audi/COUPE B2 (81; 855; 856)/1,8 GT/SF, Audi/COUPE B2 (81; 855; 856)/1,8 GT/PV, Audi/COUPE B2 (81; 855; 856)/1,8 GT/DZ, Audi/COUPE B3 (89; 8B3)/1,8/DZ, Audi/COUPE B3 (89; 8B3)/2,0/3A, Audi/COUPE B3 (89; 8B3)/2,0/AAD, Audi/COUPE B3 (89; 8B3)/2,0/ABK, Audi/COUPE B3 (89; 8B3)/2,0 16 V/6A, Audi/COUPE B3 (89; 8B3)/2,0 16 V/ACE, Audi/TT (8N3)/1,8 T quattro/APX, Audi/TT (8N3)/1,8 T quattro/BAM, Audi/TT (8N3)/1,8 T/AJQ, Audi/TT Roadster (8N9)/1,8 T quattro/APX, Audi/TT Roadster (8N9)/1,8 T quattro/BAM, Audi/TT Roadster (8N9)/1,8 T/AJQ, Seat/ALHAMBRA (7V8; 7V9)/1,8 T 20V/AWC, Seat/ALHAMBRA (7V8; 7V9)/1,8 T 20V/AJH, Seat/CORDOBA (6K1; 6K2)/1,6 i/1F, Seat/CORDOBA (6K1; 6K2)/1,6 i/AFT, Seat/CORDOBA (6K1; 6K2)/1,6 i/AEH, Seat/CORDOBA (6K1; 6K2)/1,6 i/AKL, Seat/CORDOBA (6K1; 6K2)/1,6 i/APF, Seat/CORDOBA (6K1; 6K2)/1,6 i/AUR, Seat/CORDOBA (6K1; 6K2)/1,8 i/ABS, Seat/CORDOBA (6K1; 6K2)/1,8 i/ADZ, Seat/CORDOBA (6K1; 6K2)/1,8 i/ACC, Seat/CORDOBA (6K1; 6K2)/1,8 i 16V/ADL, Seat/CORDOBA (6K1; 6K2)/2,0 i 16V/ABF, Seat/CORDOBA Vario (6K5)/1,6 i/AFT, Seat/CORDOBA Vario (6K5)/1,6 i/AEH, Seat/CORDOBA Vario (6K5)/1,6 i/AKL, Seat/CORDOBA Vario (6K5)/1,6 i/APF, Seat/CORDOBA Vario (6K5)/1,6 i/AUR, Seat/CORDOBA Vario (6K5)/1,6 i/1F, Seat/IBIZA II (6K1)/1,6 i/1F, Seat/IBIZA II (6K1)/1,6 i/AFT, Seat/IBIZA II (6K1)/1,6 i/AEH, Seat/IBIZA II (6K1)/1,6 i/AKL, Seat/IBIZA II (6K1)/1,6 i/APF, Seat/IBIZA II (6K1)/1,6 i/AUR, Seat/IBIZA II (6K1)/1,8 i/ABS, Seat/IBIZA II (6K1)/1,8 i/ADZ, Seat/IBIZA II (6K1)/1,8 i/ACC, Seat/IBIZA II (6K1)/1,8 i 16V/ADL, Seat/IBIZA II (6K1)/2,0 i 16V/ABF, Seat/INCA (6K9)/1,6 i/1F, Seat/LEON (1M1)/1,6/AEH, Seat/LEON (1M1)/1,6/AKL, Seat/LEON (1M1)/1,8 20V/AGN, Seat/LEON (1M1)/1,8 20V/APG, Seat/LEON (1M1)/1,8 T Cupra R/BAM, Seat/TOLEDO I (1L2)/1,6 i/1F, Seat/TOLEDO I (1L2)/1,6 i/EZ, Seat/TOLEDO I (1L2)/1,6 i/ABN, Seat/TOLEDO I (1L2)/1,6 i/AFT, Seat/TOLEDO I (1L2)/1,8 i/RP, Seat/TOLEDO I (1L2)/1,8 16V/PL, Seat/TOLEDO I (1L2)/1,8 16V/KR, Seat/TOLEDO I (1L2)/1,8 i/ABS, Seat/TOLEDO I (1L2)/1,8 i/ADZ, Seat/TOLEDO I (1L2)/1,8 i/ACC, Seat/TOLEDO I (1L2)/2,0 i 16V/ABF, Seat/TOLEDO II (1M2)/1,6/AEH, Seat/TOLEDO II (1M2)/1,6/AKL, Seat/TOLEDO II (1M2)/1,8 20V/AGN, Seat/TOLEDO II (1M2)/1,8 20V/APG, Skoda/FABIA I (6Y2)/2,0/AZL, Skoda/FABIA I Combi (6Y5)/2,0/AZL, Skoda/FABIA I sedan (6Y3)/2,0/AZL, Skoda/OCTAVIA I (1U2)/1,6/AEH, Skoda/OCTAVIA I (1U2)/1,6/AKL, Skoda/OCTAVIA I (1U2)/1,6/AVU, Skoda/OCTAVIA I (1U2)/1,6/BFQ, Skoda/OCTAVIA I (1U2)/1,8/AGN, Skoda/OCTAVIA I (1U2)/1,8 T/ARZ, Skoda/OCTAVIA I (1U2)/1,8 T/ARX, Skoda/OCTAVIA I (1U2)/1,8 T/AUM, Skoda/OCTAVIA I (1U2)/2,0/AQY, Skoda/OCTAVIA I (1U2)/2,0/APK, Skoda/OCTAVIA I (1U2)/2,0/AZH, Skoda/OCTAVIA I (1U2)/2,0/AEG, Skoda/OCTAVIA I (1U2)/2,0/AZJ, Skoda/OCTAVIA I Combi (1U5)/1,6/AEH, Skoda/OCTAVIA I Combi (1U5)/1,6/AKL, Skoda/OCTAVIA I Combi (1U5)/1,6/AVU, Skoda/OCTAVIA I Combi (1U5)/1,6/BFQ, Skoda/OCTAVIA I Combi (1U5)/1,8 20V/AGN, Skoda/OCTAVIA I Combi (1U5)/1,8 T/ARZ, Skoda/OCTAVIA I Combi (1U5)/1,8 T/ARX, Skoda/OCTAVIA I Combi (1U5)/1,8 T/AUM, Skoda/OCTAVIA I Combi (1U5)/2,0/AQY, Skoda/OCTAVIA I Combi (1U5)/2,0/APK, Skoda/OCTAVIA I Combi (1U5)/2,0/AZH, Skoda/OCTAVIA I Combi (1U5)/2,0/AEG, Skoda/OCTAVIA I Combi (1U5)/2,0/AZJ, Skoda/OCTAVIA I Combi (1U5)/2,0 4x4/ATF, Skoda/OCTAVIA II (1Z3)/1,6/BGU, Skoda/OCTAVIA II (1Z3)/1,6/BSE, Skoda/OCTAVIA II (1Z3)/1,6/BSF, Skoda/OCTAVIA II (1Z3)/1,6/CCSA, Skoda/OCTAVIA II (1Z3)/1,6/CMXA, Skoda/OCTAVIA II Combi (1Z5)/1,6/BGU, Skoda/OCTAVIA II Combi (1Z5)/1,6/BSE, Skoda/OCTAVIA II Combi (1Z5)/1,6/BSF, Skoda/OCTAVIA II Combi (1Z5)/1,6/CCSA, Skoda/OCTAVIA II Combi (1Z5)/1,6/CMXA, Volkswagen/BORA I (1J2)/1,6/AEH, Volkswagen/BORA I (1J2)/1,6/AKL, Volkswagen/BORA I (1J2)/1,6/APF, Volkswagen/BORA I (1J2)/1,6/AVU, Volkswagen/BORA I (1J2)/1,6/BFQ, Volkswagen/BORA I (1J2)/1,8/AGN, Volkswagen/BORA I (1J2)/1,8/BAF, Volkswagen/BORA I (1J2)/1,8 4motion/AGN, Volkswagen/BORA I (1J2)/2,0/AQY, Volkswagen/BORA I (1J2)/2,0/APK, Volkswagen/BORA I (1J2)/2,0/AEG, Volkswagen/BORA I (1J2)/2,0/AZG, Volkswagen/BORA I (1J2)/2,0/AZH, Volkswagen/BORA I (1J2)/2,0/AZJ, Volkswagen/BORA I (1J2)/2,0/BER, Volkswagen/BORA I (1J2)/2,0/BEV, Volkswagen/BORA I (1J2)/2,0/AVH, Volkswagen/BORA I (1J2)/2,0/BHP, Volkswagen/BORA I (1J2)/2,0/CBPA, Volkswagen/BORA I (1J2)/2,0/BBW, Volkswagen/BORA I (1J2)/2,0/CFEA, Volkswagen/BORA Variant (1J6)/1,6/AEH, Volkswagen/BORA Variant (1J6)/1,6/AKL, Volkswagen/BORA Variant (1J6)/1,6/APF, Volkswagen/BORA Variant (1J6)/1,6/AVU, Volkswagen/BORA Variant (1J6)/1,6/BFQ, Volkswagen/BORA Variant (1J6)/1,8 4motion/AGN, Volkswagen/BORA Variant (1J6)/2,0/AQY, Volkswagen/BORA Variant (1J6)/2,0/APK, Volkswagen/BORA Variant (1J6)/2,0/AZG, Volkswagen/BORA Variant (1J6)/2,0/AZJ, Volkswagen/BORA Variant (1J6)/2,0/BEV, Volkswagen/BORA Variant (1J6)/2,0/AVH, Volkswagen/BORA Variant (1J6)/2,0 4motion/ATF, Volkswagen/CADDY I (14)/1,6/EW, Volkswagen/CADDY I (14)/1,8/JH, Volkswagen/CADDY II (9K9A)/75 1,6/1F, Volkswagen/CADDY II (MPV) (9K9B)/1,6/1F, Volkswagen/CORRADO (53I)/1,8 16V/KR, Volkswagen/CORRADO (53I)/2,0 i 16V/9A, Volkswagen/CORRADO (53I)/2,0 i/2E, Volkswagen/CORRADO (53I)/2,0 i/ADY, Volkswagen/GOLF I (17)/1,6/EW, Volkswagen/GOLF I (17)/1,6/HN, Volkswagen/GOLF I (17)/1,8 GTI/DX, Volkswagen/GOLF I (17)/1,8 GTI/JJ, Volkswagen/GOLF I Cabriolet (155)/1,6/EW, Volkswagen/GOLF I Cabriolet (155)/1,6/HN, Volkswagen/GOLF I Cabriolet (155)/1,6/RE, Volkswagen/GOLF I Cabriolet (155)/1,8/DX, Volkswagen/GOLF I Cabriolet (155)/1,8/EV, Volkswagen/GOLF I Cabriolet (155)/1,8/KT, Volkswagen/GOLF I Cabriolet (155)/1,8/PB, Volkswagen/GOLF I Cabriolet (155)/1,8/EX, Volkswagen/GOLF I Cabriolet (155)/1,8/JH, Volkswagen/GOLF I Cabriolet (155)/1,8/2H, Volkswagen/GOLF II (19E; 1G1)/1,6/EZ, Volkswagen/GOLF II (19E; 1G1)/1,6/ABN, Volkswagen/GOLF II (19E; 1G1)/1,6/HM, Volkswagen/GOLF II (19E; 1G1)/1,6/RF, Volkswagen/GOLF II (19E; 1G1)/1,6/EZA, Volkswagen/GOLF II (19E; 1G1)/1,6/PN, Volkswagen/GOLF II (19E; 1G1)/1,8 GTI/DX, Volkswagen/GOLF II (19E; 1G1)/1,8 GTI/EV, Volkswagen/GOLF II (19E; 1G1)/1,8 GTI/GZ, Volkswagen/GOLF II (19E; 1G1)/1,8 GTI/PB, Volkswagen/GOLF II (19E; 1G1)/1,8/GX, Volkswagen/GOLF II (19E; 1G1)/1,8/HV, Volkswagen/GOLF II (19E; 1G1)/1,8/GU, Volkswagen/GOLF II (19E; 1G1)/1,8 GTI/HT, Volkswagen/GOLF II (19E; 1G1)/1,8 GTI/RV, Volkswagen/GOLF II (19E; 1G1)/1,8 GTI/RD, Volkswagen/GOLF II (19E; 1G1)/1,8 GTI 16V/KR, Volkswagen/GOLF II (19E; 1G1)/1,8 Syncro/GX, Volkswagen/GOLF II (19E; 1G1)/1,8 Syncro/GU, Volkswagen/GOLF II (19E; 1G1)/1,8 GTI 16V/PL, Volkswagen/GOLF II (19E; 1G1)/1,8/RH, Volkswagen/GOLF II (19E; 1G1)/1,8 GTI Cat/PF, Volkswagen/GOLF II (19E; 1G1)/1,8 Syncro/RH, Volkswagen/GOLF II (19E; 1G1)/1,8 i Cat Syncro/GX, Volkswagen/GOLF II (19E; 1G1)/1,8 i Cat Syncro/RP, Volkswagen/GOLF II (19E; 1G1)/1,8 i Cat/GX, Volkswagen/GOLF II (19E; 1G1)/1,8 i Cat/RP, Volkswagen/GOLF II (19E; 1G1)/1,8 Syncro/1P, Volkswagen/GOLF II Van (19E; 1G1)/1,8 i/RP, Volkswagen/GOLF III (1H1)/1,6/AEK, Volkswagen/GOLF III (1H1)/1,6/AFT, Volkswagen/GOLF III (1H1)/1,6/AKS, Volkswagen/GOLF III (1H1)/1,8/ACC, Volkswagen/GOLF III (1H1)/1,8/ABS, Volkswagen/GOLF III (1H1)/1,8/ADZ, Volkswagen/GOLF III (1H1)/1,8/ADD, Volkswagen/GOLF III (1H1)/1,8/AAM, Volkswagen/GOLF III (1H1)/1,8 Syncro (1HX1)/ABS, Volkswagen/GOLF III (1H1)/1,8 Syncro (1HX1)/ADZ, Volkswagen/GOLF III (1H1)/2,0/2E, Volkswagen/GOLF III (1H1)/2,0/ADY, Volkswagen/GOLF III (1H1)/2,0/AGG, Volkswagen/GOLF III (1H1)/2,0/AKR, Volkswagen/GOLF III (1H1)/2,0/ADC, Volkswagen/GOLF III (1H1)/2,0/ABA, Volkswagen/GOLF III (1H1)/2,0 GTI 16V/ABF, Volkswagen/GOLF III (1H1)/2,0 Syncro (1HX1)/AGG, Volkswagen/GOLF III (1H1)/2,0 GL/AEP, Volkswagen/GOLF III Cabriolet (1E7)/1,6/AEK, Volkswagen/GOLF III Cabriolet (1E7)/1,6/AFT, Volkswagen/GOLF III Cabriolet (1E7)/1,6/AKS, Volkswagen/GOLF III Cabriolet (1E7)/1,8/ABS, Volkswagen/GOLF III Cabriolet (1E7)/1,8/ADZ, Volkswagen/GOLF III Cabriolet (1E7)/1,8/ANP, Volkswagen/GOLF III Cabriolet (1E7)/1,8/AAM, Volkswagen/GOLF III Cabriolet (1E7)/1,8/ANN, Volkswagen/GOLF III Cabriolet (1E7)/2,0/2E, Volkswagen/GOLF III Cabriolet (1E7)/2,0/ADY, Volkswagen/GOLF III Cabriolet (1E7)/2,0/AGG, Volkswagen/GOLF III Cabriolet (1E7)/2,0/AKR, Volkswagen/GOLF III Cabriolet (1E7)/2,0/ABA, Volkswagen/GOLF III Van (1H1)/1,8/AAM, Volkswagen/GOLF III Van (1H1)/1,8/ABS, Volkswagen/GOLF III Van (1H1)/1,8/ADZ, Volkswagen/GOLF III Van (1H1)/2,0 GTI/ABF, Volkswagen/GOLF III Van (1H1)/2,0/AGG, Volkswagen/GOLF III Variant (1H5)/1,6/AEK, Volkswagen/GOLF III Variant (1H5)/1,6/AFT, Volkswagen/GOLF III Variant (1H5)/1,6/AKS, Volkswagen/GOLF III Variant (1H5)/1,8/ABS, Volkswagen/GOLF III Variant (1H5)/1,8/ADZ, Volkswagen/GOLF III Variant (1H5)/1,8/ANP, Volkswagen/GOLF III Variant (1H5)/1,8/AAM, Volkswagen/GOLF III Variant (1H5)/1,8/ANN, Volkswagen/GOLF III Variant (1H5)/1,8 Syncro/ADZ, Volkswagen/GOLF III Variant (1H5)/2,0/2E, Volkswagen/GOLF III Variant (1H5)/2,0/ADY, Volkswagen/GOLF III Variant (1H5)/2,0/AGG, Volkswagen/GOLF III Variant (1H5)/2,0/AKR, Volkswagen/GOLF III Variant (1H5)/2,0/AEP, Volkswagen/GOLF III Variant (1H5)/2,0 Syncro/AGG, Volkswagen/GOLF IV (1J1)/1,6/AEH, Volkswagen/GOLF IV (1J1)/1,6/AKL, Volkswagen/GOLF IV (1J1)/1,6/APF, Volkswagen/GOLF IV (1J1)/1,6/AVU, Volkswagen/GOLF IV (1J1)/1,6/BFQ, Volkswagen/GOLF IV (1J1)/1,8/AGN, Volkswagen/GOLF IV (1J1)/1,8 4motion/AGN, Volkswagen/GOLF IV (1J1)/1,8 T GTI/BEK, Volkswagen/GOLF IV (1J1)/2,0/AQY, Volkswagen/GOLF IV (1J1)/2,0/APK, Volkswagen/GOLF IV (1J1)/2,0/AEG, Volkswagen/GOLF IV (1J1)/2,0/AZG, Volkswagen/GOLF IV (1J1)/2,0/AZJ, Volkswagen/GOLF IV (1J1)/2,0/BER, Volkswagen/GOLF IV (1J1)/2,0/BEV, Volkswagen/GOLF IV (1J1)/2,0/AVH, Volkswagen/GOLF IV (1J1)/2,0/BEJ, Volkswagen/GOLF IV (1J1)/2,0/BHP, Volkswagen/GOLF IV Cabriolet (1E7)/1,6/AFT, Volkswagen/GOLF IV Cabriolet (1E7)/1,6/AKS, Volkswagen/GOLF IV Cabriolet (1E7)/1,8/ADZ, Volkswagen/GOLF IV Cabriolet (1E7)/1,8/ANP, Volkswagen/GOLF IV Cabriolet (1E7)/1,8/AAM, Volkswagen/GOLF IV Cabriolet (1E7)/1,8/ANN, Volkswagen/GOLF IV Cabriolet (1E7)/2,0/AGG, Volkswagen/GOLF IV Cabriolet (1E7)/2,0/AKR, Volkswagen/GOLF IV Cabriolet (1E7)/2,0/AWF, Volkswagen/GOLF IV Cabriolet (1E7)/2,0/AWG, Volkswagen/GOLF IV Cabriolet (1E7)/2,0/ATU, Volkswagen/GOLF IV Cabriolet (1E7)/2,0/ABA, Volkswagen/GOLF IV Variant (1J5)/1,6/AEH, Volkswagen/GOLF IV Variant (1J5)/1,6/AKL, Volkswagen/GOLF IV Variant (1J5)/1,6/APF, Volkswagen/GOLF IV Variant (1J5)/1,6/AVU, Volkswagen/GOLF IV Variant (1J5)/1,6/BFQ, Volkswagen/GOLF IV Variant (1J5)/1,8 4motion/AGN, Volkswagen/GOLF IV Variant (1J5)/2,0/AQY, Volkswagen/GOLF IV Variant (1J5)/2,0/APK, Volkswagen/GOLF IV Variant (1J5)/2,0/AZJ, Volkswagen/GOLF IV Variant (1J5)/2,0 4motion/ATF, Volkswagen/GOLF V (1K1)/2,0/BEV, Volkswagen/GOLF V (1K1)/2,0/BHY, Volkswagen/GOLF Van III Variant (1H5)/1,8/AAM, Volkswagen/GOLF Van III Variant (1H5)/1,8/ABS, Volkswagen/GOLF Van III Variant (1H5)/1,8/ADZ, Volkswagen/JETTA I (16)/1,6/EW, Volkswagen/JETTA I (16)/1,8/DX, Volkswagen/JETTA I (16)/1,8/JJ, Volkswagen/JETTA II (19E; 1G2; 165)/1,6/EZ, Volkswagen/JETTA II (19E; 1G2; 165)/1,6/ABN, Volkswagen/JETTA II (19E; 1G2; 165)/1,6/HM, Volkswagen/JETTA II (19E; 1G2; 165)/1,6/RF, Volkswagen/JETTA II (19E; 1G2; 165)/1,6/PN, Volkswagen/JETTA II (19E; 1G2; 165)/1,8/EV, Volkswagen/JETTA II (19E; 1G2; 165)/1,8/GZ, Volkswagen/JETTA II (19E; 1G2; 165)/1,8/PB, Volkswagen/JETTA II (19E; 1G2; 165)/1,8/JH, Volkswagen/JETTA II (19E; 1G2; 165)/1,8/GX, Volkswagen/JETTA II (19E; 1G2; 165)/1,8/HV, Volkswagen/JETTA II (19E; 1G2; 165)/1,8/GU, Volkswagen/JETTA II (19E; 1G2; 165)/1,8/HT, Volkswagen/JETTA II (19E; 1G2; 165)/1,8/RV, Volkswagen/JETTA II (19E; 1G2; 165)/1,8/RD, Volkswagen/JETTA II (19E; 1G2; 165)/1,8/RH, Volkswagen/JETTA II (19E; 1G2; 165)/1,8 16V/PL, Volkswagen/JETTA II (19E; 1G2; 165)/1,8 Cat/PF, Volkswagen/JETTA II (19E; 1G2; 165)/1,8 16V/KR, Volkswagen/JETTA II (19E; 1G2; 165)/1,8 Syncro/RH, Volkswagen/JETTA II (19E; 1G2; 165)/1,8 Syncro/GX, Volkswagen/JETTA II (19E; 1G2; 165)/1,8 Syncro/GU, Volkswagen/JETTA II (19E; 1G2; 165)/1,8 Syncro/RP, Volkswagen/JETTA II (19E; 1G2; 165)/1,8 Cat/GX, Volkswagen/JETTA II (19E; 1G2; 165)/1,8 Cat/RP, Volkswagen/JETTA II (19E; 1G2; 165)/1,8 Syncro/1P, Volkswagen/JETTA II (19E; 1G2; 165)/2,0/9A, Volkswagen/MULTIVAN V (7HM; 7HN; 7HF; 7EF; 7EM; 7EN)/2,0/AXA, Volkswagen/NEW BEETLE (9C1; 1C1)/1,6/AWH, Volkswagen/NEW BEETLE (9C1; 1C1)/1,6/AYD, Volkswagen/NEW BEETLE (9C1; 1C1)/1,6/BFS, Volkswagen/NEW BEETLE (9C1; 1C1)/1,8 T/APH, Volkswagen/NEW BEETLE (9C1; 1C1)/1,8 T/AVC, Volkswagen/NEW BEETLE (9C1; 1C1)/1,8 T/AWU, Volkswagen/NEW BEETLE (9C1; 1C1)/1,8 T/AWV, Volkswagen/NEW BEETLE (9C1; 1C1)/1,8 T/BKF, Volkswagen/NEW BEETLE (9C1; 1C1)/1,8 T/BNU, Volkswagen/NEW BEETLE (9C1; 1C1)/2,0/AQY, Volkswagen/NEW BEETLE (9C1; 1C1)/2,0/APK, Volkswagen/NEW BEETLE (9C1; 1C1)/2,0/AEG, Volkswagen/NEW BEETLE (9C1; 1C1)/2,0/AZG, Volkswagen/NEW BEETLE (9C1; 1C1)/2,0/AZJ, Volkswagen/NEW BEETLE (9C1; 1C1)/2,0/BER, Volkswagen/NEW BEETLE (9C1; 1C1)/2,0/BEV, Volkswagen/NEW BEETLE (9C1; 1C1)/2,0/AVH, Volkswagen/NEW BEETLE (9C1; 1C1)/2,0/BEJ, Volkswagen/NEW BEETLE (9C1; 1C1)/2,0/BHP, Volkswagen/NEW BEETLE (9C1; 1C1)/2,0/CBPA, Volkswagen/NEW BEETLE Convertible (1Y7)/1,8 T/AWU, Volkswagen/NEW BEETLE Convertible (1Y7)/1,8 T/AWV, Volkswagen/NEW BEETLE Convertible (1Y7)/1,8 T/BKF, Volkswagen/PASSAT B2 (32B)/1,3/EP, Volkswagen/PASSAT B2 (32B)/1,3/EU, Volkswagen/PASSAT B2 (32B)/1,6/DT, Volkswagen/PASSAT B2 (32B)/1,6/RL, Volkswagen/PASSAT B2 (32B)/1,6/PP, Volkswagen/PASSAT B2 (32B)/1,6/DTA, Volkswagen/PASSAT B2 (32B)/1,8/DS, Volkswagen/PASSAT B2 (32B)/1,8/JN, Volkswagen/PASSAT B2 (32B)/1,8/JV, Volkswagen/PASSAT B2 (32B)/1,8/DZ, Volkswagen/PASSAT B2 sedan (32B)/1,6/DT, Volkswagen/PASSAT B2 sedan (32B)/1,6/JU, Volkswagen/PASSAT B2 sedan (32B)/1,6/RL, Volkswagen/PASSAT B2 sedan (32B)/1,6/PP, Volkswagen/PASSAT B2 sedan (32B)/1,6/DTA, Volkswagen/PASSAT B2 sedan (32B)/1,8/DS, Volkswagen/PASSAT B2 sedan (32B)/1,8/JN, Volkswagen/PASSAT B2 Variant (33B)/1,3/EP, Volkswagen/PASSAT B2 Variant (33B)/1,3/EU, Volkswagen/PASSAT B2 Variant (33B)/1,6/DT, Volkswagen/PASSAT B2 Variant (33B)/1,6/JU, Volkswagen/PASSAT B2 Variant (33B)/1,6/RL, Volkswagen/PASSAT B2 Variant (33B)/1,6/PP, Volkswagen/PASSAT B2 Variant (33B)/1,6/DTA, Volkswagen/PASSAT B2 Variant (33B)/1,8/DS, Volkswagen/PASSAT B2 Variant (33B)/1,8/JN, Volkswagen/PASSAT B2 Variant (33B)/1,8/JV, Volkswagen/PASSAT B2 Variant (33B)/1,8/DZ, Volkswagen/PASSAT B2 Variant (33B)/1,8 Syncro/DS, Volkswagen/PASSAT B2 Variant (33B)/1,8 Syncro/JN, Volkswagen/PASSAT B5 (3B2)/1,6/AHL, Volkswagen/PASSAT B5 (3B2)/1,6/ADP, Volkswagen/PASSAT B5 (3B2)/1,6/ANA, Volkswagen/PASSAT B5 (3B2)/1,6/ARM, Volkswagen/PASSAT B5 (3B2)/1,8/ADR, Volkswagen/PASSAT B5 (3B2)/1,8/APT, Volkswagen/PASSAT B5 (3B2)/1,8/ARG, Volkswagen/PASSAT B5 (3B2)/1,8 T/AEB, Volkswagen/PASSAT B5 (3B2)/1,8 T/ANB, Volkswagen/PASSAT B5 (3B2)/1,8 T/ATW, Volkswagen/PASSAT B5 (3B2)/1,8 T/AUG, Volkswagen/PASSAT B5 (3B2)/1,8/AFY, Volkswagen/PASSAT B5 (3B2)/2,0 4motion/ASU, Volkswagen/PASSAT B5 (3B2)/2,0/ASU, Volkswagen/PASSAT B5 (3B2)/2,0/AUZ, Volkswagen/PASSAT B5 Variant (3B5)/1,6/AHL, Volkswagen/PASSAT B5 Variant (3B5)/1,6/ADP, Volkswagen/PASSAT B5 Variant (3B5)/1,6/ANA, Volkswagen/PASSAT B5 Variant (3B5)/1,6/ARM, Volkswagen/PASSAT B5 Variant (3B5)/1,8 T/AEB, Volkswagen/PASSAT B5 Variant (3B5)/1,8 T/ANB, Volkswagen/PASSAT B5 Variant (3B5)/1,8 T/ATW, Volkswagen/PASSAT B5 Variant (3B5)/1,8 T/AUG, Volkswagen/PASSAT B5 Variant (3B5)/1,8/ADR, Volkswagen/PASSAT B5 Variant (3B5)/1,8/APT, Volkswagen/PASSAT B5 Variant (3B5)/1,8/ARG, Volkswagen/PASSAT B5 Variant (3B5)/1,8/AFY, Volkswagen/PASSAT B5 Variant (3B5)/2,0/ASU, Volkswagen/PASSAT B5 Variant (3B5)/2,0/AUZ, Volkswagen/PASSAT B5 Variant (3B5)/2,0 4motion/ASU, Volkswagen/PASSAT B5 Variant (3B5)/2,0 4motion/AUZ, Volkswagen/PASSAT B5,5 (3B3)/1,8 T/AWM, Volkswagen/PASSAT B5,5 (3B3)/1,8 T 4motion/AWM, Volkswagen/PASSAT B5,5 Variant (3B6)/1,8 T/AWM, Volkswagen/POLO III CLASSIC (6V2)/75 1,6/1F, Volkswagen/POLO III CLASSIC (6V2)/100 1,6/AFT, Volkswagen/POLO III CLASSIC (6V2)/100 1,6/AEH, Volkswagen/POLO III CLASSIC (6V2)/100 1,6/AKL, Volkswagen/POLO III CLASSIC (6V2)/100 1,6/APF, Volkswagen/POLO III CLASSIC (6V2)/100 1,6/AUR, Volkswagen/POLO III CLASSIC (6V2)/1,6/AKL, Volkswagen/POLO III CLASSIC (6V2)/90 1,8/ABS, Volkswagen/POLO III CLASSIC (6V2)/90 1,8/ADZ, Volkswagen/POLO III CLASSIC (6V2)/90 1,8/ADD, Volkswagen/POLO Variant (6V5)/1,6/AFT, Volkswagen/POLO Variant (6V5)/1,6/AEH, Volkswagen/POLO Variant (6V5)/1,6/AKL, Volkswagen/POLO Variant (6V5)/1,6/APF, Volkswagen/POLO Variant (6V5)/1,6/AUR, Volkswagen/POLO Variant (6V5)/1,8/ADZ, Volkswagen/SANTANA (32B)/1,6/DT, Volkswagen/SANTANA (32B)/1,8/DS, Volkswagen/SCIROCCO (53B)/1,6/EW, Volkswagen/SCIROCCO (53B)/1,6/EWA, Volkswagen/SCIROCCO (53B)/1,6/RE, Volkswagen/SCIROCCO (53B)/1,8/DX, Volkswagen/SCIROCCO (53B)/1,8/EV, Volkswagen/SCIROCCO (53B)/1,8/JJ, Volkswagen/SCIROCCO (53B)/1,8/PB, Volkswagen/SCIROCCO (53B)/1,8/EX, Volkswagen/SCIROCCO (53B)/1,8 16V/KR, Volkswagen/SCIROCCO (53B)/1,8/JH, Volkswagen/SCIROCCO (53B)/1,8 16V/PL, Volkswagen/SHARAN (7M8; 7M9; 7M6)/1,8 T 20V/AJH, Volkswagen/SHARAN (7M8; 7M9; 7M6)/1,8 T 20V/AWC, Volkswagen/SHARAN (7M8; 7M9; 7M6)/2,0/ADY, Volkswagen/SHARAN (7M8; 7M9; 7M6)/2,0/ATM, Volkswagen/SHARAN (7M8; 7M9; 7M6)/2,0 LPG/ATM, Volkswagen/SHARAN VAN (7M_)/2,0 (7M8; 7M9)/ADY, Volkswagen/SHARAN VAN (7M_)/2,0 (7M8; 7M9)/ATM, Volkswagen/TRANSPORTER IV (70B; 70C; 7DB; 7DK; 70J; 70K; 7DC; 7/2,0/AAC, Volkswagen/TRANSPORTER IV (70E; 70L; 70M; 7DE; 7DL/2,0/AAC, Volkswagen/TRANSPORTER IV (70A; 70H; 7DA; 7DH)/2,0/AAC, Volkswagen/TRANSPORTER V (7HB; 7HJ; 7EB; 7EJ)/2,0/AXA, Volkswagen/TRANSPORTER V (7JD; 7JE; 7JL; 7JY; 7JZ;/2,0 CNG/AXA, Volkswagen/TRANSPORTER V (7JD; 7JE; 7JL; 7JY; 7JZ;/2,0/AXA, Volkswagen/TRANSPORTER V (7HA; 7HH; 7EA; 7EH)/2,0/AXA, Volkswagen/TRANSPORTER V (7HA; 7HH; 7EA; 7EH)/2,0 BiFuel/AXA, Volkswagen/VENTO (1H2)/1,6/AEK, Volkswagen/VENTO (1H2)/1,6/AFT, Volkswagen/VENTO (1H2)/1,6/AKS, Volkswagen/VENTO (1H2)/1,8/AAM, Volkswagen/VENTO (1H2)/1,8/ACC, Volkswagen/VENTO (1H2)/1,8/ABS, Volkswagen/VENTO (1H2)/1,8/ADZ, Volkswagen/VENTO (1H2)/1,8/ADD, Volkswagen/VENTO (1H2)/2,0/2E, Volkswagen/VENTO (1H2)/2,0/ADY, Volkswagen/VENTO (1H2)/2,0/AGG, Volkswagen/VENTO (1H2)/2,0/AKR, Volkswagen/VENTO (1H2)/2,0/ABA, Volkswagen/VENTO (1H2)/2,0 GL/AEP, Volkswagen/PASSAT B3/1,8/AAM, Volkswagen/PASSAT B4/1,8/AAM, Volkswagen/PASSAT B3/2,0 Syncro/2E, Volkswagen/PASSAT B4/2,0 Syncro/2E, Volkswagen/PASSAT B3/2,0/2E, Volkswagen/PASSAT B4/2,0/2E, Volkswagen/PASSAT B3/1,6/RF, Volkswagen/PASSAT B4/1,6/RF, Volkswagen/PASSAT B3/1,6/EZ, Volkswagen/PASSAT B4/1,6/EZ, Volkswagen/PASSAT B3/1,6/1F, Volkswagen/PASSAT B4/1,6/1F, Volkswagen/PASSAT B3/1,6/ABN, Volkswagen/PASSAT B4/1,6/ABN, Volkswagen/PASSAT B3/1,6/AEK, Volkswagen/PASSAT B4/1,6/AEK, Volkswagen/PASSAT B3/1,6/AFT, Volkswagen/PASSAT B4/1,6/AFT, Volkswagen/PASSAT B3/1,8/ABS, Volkswagen/PASSAT B4/1,8/ABS, Volkswagen/PASSAT B3/1,8/ADZ, Volkswagen/PASSAT B4/1,8/ADZ, Volkswagen/PASSAT B3/1,8/RP, Volkswagen/PASSAT B4/1,8/RP, Volkswagen/PASSAT B3/1,8 16V/KR, Volkswagen/PASSAT B4/1,8 16V/KR, Volkswagen/PASSAT B3/1,8/PB, Volkswagen/PASSAT B4/1,8/PB, Volkswagen/PASSAT B3/1,8/PF, Volkswagen/PASSAT B4/1,8/PF, Volkswagen/PASSAT B3/1,8 GL/KR, Volkswagen/PASSAT B4/1,8 GL/KR, Volkswagen/PASSAT B3/2,0 16V/9A, Volkswagen/PASSAT B4/2,0 16V/9A, Volkswagen/PASSAT B3/2,0/ADY, Volkswagen/PASSAT B4/2,0/ADY, Volkswagen/PASSAT B3/2,0/AGG, Volkswagen/PASSAT B4/2,0/AGG, Volkswagen/PASSAT B3/2,0/ABA, Volkswagen/PASSAT B4/2,0/ABA, Volkswagen/PASSAT B3/2,0 Syncro/ADY, Volkswagen/PASSAT B4/2,0 Syncro/ADY, Volkswagen/PASSAT B3/2,0 Syncro/AGG, Volkswagen/PASSAT B4/2,0 Syncro/AGG, Volkswagen/PASSAT B3/2,0 16V/ABF, Volkswagen/PASSAT B4/2,0 16V/ABF, Volkswagen/PASSAT B3/2,0/AEP, Volkswagen/PASSAT B4/2,0/AEP, Volkswagen/PASSAT B5 (3B2)/1,8 Syncro; 4motion/ADR, Volkswagen/PASSAT B5 (3B2)/1,8 Syncro; 4motion/APT, Volkswagen/PASSAT B5 (3B2)/1,8 Syncro; 4motion/ARG, Volkswagen/PASSAT B5 Variant (3B5)/1,8 Syncro; 4motion/ADR, Volkswagen/PASSAT B5 Variant (3B5)/1,8 Syncro; 4motion/APT, Volkswagen/PASSAT B5 Variant (3B5)/1,8 Syncro; 4motion/ARG



APLIKAČNÍ KATALOG ACL

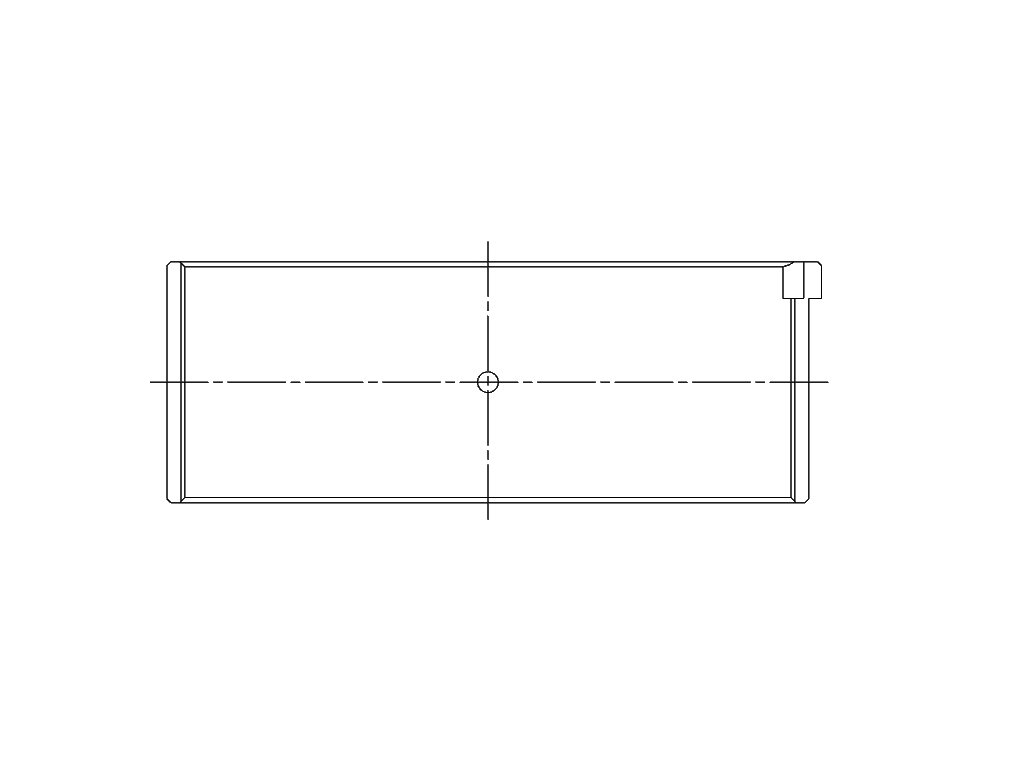

Obrázek je pouze ilustrační.

ACL je australská společnost s více než 70letou tradicí výroby přesných ložisek motorů, sídlící v Launcestonu, Tasmánie. Firma je významným dodavatelem OEM ložisek pro automobilový průmysl a zároveň nabízí rozsáhlý sortiment náhradních dílů pro globální aftermarket. Její produkty jsou známé svou vysokou kvalitou, precizností, robustní metalurgií a výkonem.

ACL má bohatou historii v motorsportu, sahající až do 60. let, kdy vyráběla ložiska pro tým Brabham ve Formuli 1. Její RACE Series Performance Engine Bearings si našly uplatnění v závodech jako australské Supercars, drag racing, rally a drift. Díky tomu jsou často první volbou pro motorové specialisty po celém světě.

Společnost nabízí jednu z největších nabídek ložisek motorů na aftermarketu, pokrývající přes 200 aplikací pro australské, americké, japonské, korejské a evropské vozy. Sortiment se neustále rozšiřuje o nově uvedené motory.

ACL disponuje vysokou úrovní vertikální integrace, zahrnující návrh a výrobu materiálů, nástrojů a složitých výrobních procesů. Firma se pyšní certifikacemi ISO9001:2015 (kvalita), ISO14001:2015 (ekologie) a ISO451001:2018 (bezpečnost práce).

Díky této kombinaci tradice, inovace a zaměření na výkon si ACL vybudovalo celosvětovou reputaci v oblasti motorových ložisek.
