Ojniční ložiska ACL Race Series (contains: 1B1606HX-STD; 4B1606HX-STD) 5B1606HX-STD

Detailní popis produktu

 Ojniční ložiska ACL Race Series (contains: 1B1606HX-STD; 4B1606HX-STD) 5B1606HX-STD



Popis výrobce:

The unique combination of design; metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.

Designed to withstand higher RPM conditions; ACL Race Series Engine Bearings are available for many of the popular 4; 6 & 8 cylinder applications and feature:

• High strength overlay plate with reduced thickness for improved fatigue properties
• Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
• Increased crush for improved bearing retention
• Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
• Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
• 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
• Tight consistent wall tolerances to help you maintain consistent clearances.
• Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.



Tunnel [mm]: 50.600 / 50.619, Shaft [mm]: 47.758 / 47.778, Max. Wall: 1.405, Max. Length: \t17.4, Half type: Identical halves>
Aplikace: Audi/200 C3 Avant 2,2 Turbo quattro/SOHC/OHC 10v/\t1B, Audi/200 C3 Saloon 2,2 Turbo/SOHC/OHC 10v/\t1B, Audi/200 C3 Saloon 2,2 Turbo quattro/SOHC/OHC 10v/\t1B, Audi/200 C3 Saloon 2,2 Turbo/SOHC/OHC 10v/2B, Audi/100 C3 Avant 2,4 D/SOHC/OHC 10v/3D, Audi/100 C3 Saloon 2,4 D/SOHC/OHC 10v/3D, Audi/90 B3 2,2 E/DOHC 20v/7A, Audi/90 B3 2,2 E quattro/DOHC 20v/7A, Audi/Coupe B3 2,3/DOHC 20v/7A, Audi/Coupe B3 2,3 quattro/DOHC 20v/7A, Volkswagen/Transporter Passenger VAN 2,4 TDI/SOHC/OHC 10v/AAB, Volkswagen/Transporter T4 2,4 D/SOHC/OHC 10v/AAB, Volkswagen/Transporter T4 2,4 D Syncro/SOHC/OHC 10v/AAB, Volkswagen/Transporter T4 Bus 2,5/SOHC/OHC 10v/AAF, Volkswagen/Transporter T4 Bus 2,5 Syncro/SOHC/OHC 10v/AAF, Volkswagen/Transporter T4 Van 2,5/SOHC/OHC 10v/AAF, Volkswagen/Transporter T4 Van 2,5 Syncro/SOHC/OHC 10v/AAF, Audi/100 C4 Avant 2,3 E/SOHC/OHC 10v/AAR, Audi/100 C4 Avant 2,3 E quattro/SOHC/OHC 10v/AAR, Audi/100 C4 Saloon 2,3 E/SOHC/OHC 10v/AAR, Audi/100 C4 Saloon 2,3 E quattro/SOHC/OHC 10v/AAR, Audi/A6 C4 2,3/SOHC/OHC 10v/AAR, Audi/A6 C4 2,3 quattro/SOHC/OHC 10v/AAR, Audi/A6 C4 Avant 2,3/SOHC/OHC 10v/AAR, Audi/A6 C4 Avant 2,3 quattro/SOHC/OHC 10v/AAR, Audi/100 C4 Avant 2,4 D/SOHC/OHC 10v/AAS, Audi/100 C4 Saloon 2,4 D/SOHC/OHC 10v/AAS, Volkswagen/Transporter T4 Bus 2,5/SOHC/OHC 10v/ACU, Volkswagen/Transporter T4 Bus 2,5 Syncro/SOHC/OHC 10v/ACU, Volkswagen/Transporter T4 Van 2,5/SOHC/OHC 10v/ACU, Volkswagen/Transporter T4 Van 2,5 Syncro/SOHC/OHC 10v/ACU, Volkswagen/Transporter T4 Bus 2,5/SOHC/OHC 10v/AEN, Volkswagen/Transporter T4 Van 2,5/SOHC/OHC 10v/AEN, Volkswagen/California T4 Camper/SOHC/OHC 10v/AET, Volkswagen/Transporter T4 Bus 2,5/SOHC/OHC 10v/AET, Volkswagen/Transporter T4 Bus 2,5 Syncro/SOHC/OHC 10v/AET, Volkswagen/Transporter T4 Van 2,5/SOHC/OHC 10v/AET, Volkswagen/Transporter T4 Van 2,5 Syncro/SOHC/OHC 10v/AET, Volkswagen/California T4 Camper/SOHC/OHC 10v/AEU, Volkswagen/Transporter T4 Bus 2,5/SOHC/OHC 10v/AEU, Volkswagen/Transporter T4 Bus 2,5 Syncro/SOHC/OHC 10v/AEU, Volkswagen/Transporter T4 Van 2,5/SOHC/OHC 10v/AEU, Volkswagen/Transporter T4 Van 2,5 Syncro/SOHC/OHC 10v/AEU, Volkswagen/California T4 Camper/SOHC/OHC 10v/AJA, Volkswagen/Transporter T4 Bus 2,4 D/SOHC/OHC 10v/AJA, Volkswagen/Transporter T4 Van 2,4 D/SOHC/OHC 10v/AJA, Volkswagen/California T4 Camper 2,5/SOHC/OHC 10v/APL, Volkswagen/Transporter T4 Bus 2,5/SOHC/OHC 10v/APL, Volkswagen/Transporter T4 Bus 2,5 Syncro/SOHC/OHC 10v/APL, Volkswagen/Transporter T4 Van 2,5/SOHC/OHC 10v/APL, Volkswagen/Transporter T4 Van 2,5 Syncro/SOHC/OHC 10v/APL, Volkswagen/California T4 Camper 2,5/SOHC/OHC 10v/AVT, Volkswagen/Transporter T4 Bus 2,5/SOHC/OHC 10v/AVT, Volkswagen/Transporter T4 Bus 2,5 Syncro/SOHC/OHC 10v/AVT, Volkswagen/Transporter T4 Van 2,5/SOHC/OHC 10v/AVT, Volkswagen/Transporter T4 Van 2,5 Syncro/SOHC/OHC 10v/AVT, Audi/100 C2 Avant 2,0 D/SOHC/OHC 10v/CN, Audi/100 C2 Saloon 2,0 D/SOHC/OHC 10v/CN, Audi/100 C3 Avant 2,0 D/SOHC/OHC 10v/CN, Audi/100 C3 Avant 2,0 TD/SOHC/OHC 10v/DE, Audi/100 C3 Saloon 2,0 D/SOHC/OHC 10v/DE, Audi/100 C3 Saloon 2,0 D Turbo/SOHC/OHC 10v/DE, Audi/Quattro 2,1 Turbo/SOHC/OHC 10v/GV, Audi/80 B2 Saloon 2,0/SOHC/OHC 10v/HP, Audi/90 B2 2,0/SOHC/OHC 10v/HP, Audi/Coupe B2 2,0/SOHC/OHC 10v/HP, Audi/100 C3 Avant 2,2 Cat/SOHC/OHC 10v/HX, Audi/100 C3 Avant 2,2 Cat quattro/SOHC/OHC 10v/HX, Audi/100 C3 Saloon 2,2 Cat/SOHC/OHC 10v/HX, Audi/100 C3 Saloon 2,2 Cat quattro/SOHC/OHC 10v/HX, Audi/80 B2 Saloon 2,2 quattro/SOHC/OHC 10v/HY, Audi/90 B2 2,2/SOHC/OHC 10v/HY, Audi/Coupe B2 2,2 GT/SOHC/OHC 10v/HY, Volkswagen/Passat B2 2,2 Syncro/SOHC/OHC 10v/HY, Audi/80 B2 Saloon 2,0/SOHC/OHC 10v/JS, Audi/80 B2 Saloon 2,0 quattro/SOHC/OHC 10v/JS, Audi/90 B2 2,0/SOHC/OHC 10v/JS, Audi/90 B2 2,0 quattro/SOHC/OHC 10v/JS, Audi/Coupe B2 2,0/SOHC/OHC 10v/JS, Audi/80 B2 Saloon 2,2/SOHC/OHC 10v/JT, Audi/90 B2 2,2 E quattro/SOHC/OHC 10v/JT, Audi/Coupe B2 2,2 quattro/SOHC/OHC 10v/JT, Volkswagen/Passat B2 2,2 Syncro/SOHC/OHC 10v/JT, Audi/200 C3 Avant 2,1 Turbo quattro/SOHC/OHC 10v/JY, Audi/Coupe B2 2,1 GT/SOHC/OHC 10v/KE, Audi/100 C3 Avant 2,1/SOHC/OHC 10v/\tKF, Audi/100 C3 Saloon 2,2/SOHC/OHC 10v/\tKF, Audi/200 C3 Avant 2,1 Turbo quattro/SOHC/OHC 10v/KG, Audi/200 C3 Saloon 2,1 Turbo/SOHC/OHC 10v/KG, Audi/200 C3 Saloon 2,1 Turbo quattro/SOHC/OHC 10v/KG, Audi/200 C3 Saloon 2,1 5E/SOHC/OHC 10v/KH, Audi/80 B2 Saloon 2,2 quattro/SOHC/OHC 10v/KK, Audi/80 B2 Saloon 2,2 quattro/SOHC/OHC 10v/KL, Audi/Coupe B2 2,1 GT/SOHC/OHC 10v/KL, Audi/100 C3 Avant 2,0 E/SOHC/OHC 10v/KP, Audi/100 C3 Saloon 2,0/SOHC/OHC 10v/KP, Audi/100 C3 Avant 2,2/SOHC/OHC 10v/KU, Audi/100 C3 Avant 2,2 Cat/SOHC/OHC 10v/KU, Audi/100 C3 Avant 2,2 Cat quattro/SOHC/OHC 10v/KU, Audi/100 C3 Avant 2,2 quattro/SOHC/OHC 10v/KU, Audi/100 C3 Saloon 2,2/SOHC/OHC 10v/KU, Audi/100 C3 Saloon 2,2 Cat/SOHC/OHC 10v/KU, Audi/100 C3 Saloon 2,2 Cat quattro/SOHC/OHC 10v/KU, Audi/100 C3 Saloon 2,2 quattro/SOHC/OHC 10v/KU, Audi/200 C3 Saloon 2,2/SOHC/OHC 10v/KU, Audi/90 B2 2,2/SOHC/OHC 10v/KV, Audi/90 B2 2,2 E quattro/SOHC/OHC 10v/KV, Audi/90 B3 2,2 E/SOHC/OHC 10v/KV, Audi/90 B3 2,2 E quattro/SOHC/OHC 10v/KV, Audi/Coupe B2 2,2 GT/SOHC/OHC 10v/KV, Audi/Coupe B2 2,2 quattro/SOHC/OHC 10v/KV, Audi/Coupe B3 2,2/SOHC/OHC 10v/KV, Audi/Coupe B3 2,2 quattro/SOHC/OHC 10v/KV, Volkswagen/Passat B2 2,2/SOHC/OHC 10v/KV, Audi/Quattro 2,1 Turbo/DOHC 20v/KW, Audi/80 B2 Saloon 2,2/SOHC/OHC 10v/KX, Audi/90 B2 2,2/SOHC/OHC 10v/KX, Audi/Coupe B2 2,2 GT/SOHC/OHC 10v/KX, Volkswagen/Passat B2 2,2/SOHC/OHC 10v/KX, Volkswagen/Passat B2 Saloon 2,2/SOHC/OHC 10v/KX, Volkswagen/Passat B2 2,2 Syncro/SOHC/OHC 10v/KX, Volkswagen/Santana 2,2/SOHC/OHC 10v/KX, Audi/100 C3 Avant 2,2/SOHC/OHC 10v/KZ, Audi/100 C3 Saloon 2,2/SOHC/OHC 10v/KZ, Audi/100 C3 Avant 2,0 TD/SOHC/OHC 10v/NC, Audi/100 C3 Saloon 2,0 D Turbo/SOHC/OHC 10v/NC, Audi/100 C3 Avant 2,3/SOHC/OHC 10v/NF, Audi/100 C3 Avant 2,3 E quattro/SOHC/OHC 10v/NF, Audi/100 C3 Avant 2,3 quattro/SOHC/OHC 10v/NF, Audi/100 C3 Saloon 2,3/SOHC/OHC 10v/NF, Audi/100 C3 Saloon 2,3 E/SOHC/OHC 10v/NF, Audi/100 C3 Saloon 2,3 E quattro/SOHC/OHC 10v/NF, Audi/100 C3 Saloon 2,3 quattro/SOHC/OHC 10v/NF, Audi/200 C3 Avant 2,3/SOHC/OHC 10v/NF, Audi/200 C3 Saloon 2,3/SOHC/OHC 10v/NF, Audi/80 B3 Saloon 2,3/SOHC/OHC 10v/NG, Audi/80 B3 Saloon 2,3 quattro/SOHC/OHC 10v/NG, Audi/80 B4 Avant 2,3 E/SOHC/OHC 10v/NG, Audi/80 B4 Avant 2,3 E quattro/SOHC/OHC 10v/NG, Audi/80 B4 Saloon 2,3 E/SOHC/OHC 10v/NG, Audi/80 B4 Saloon 2,3 E quattro/SOHC/OHC 10v/NG, Audi/90 B3 2,3 E/SOHC/OHC 10v/NG, Audi/90 B3 2,3 E quattro/SOHC/OHC 10v/NG, Audi/Cabriolet B3 2,3 E/SOHC/OHC 10v/NG, Audi/Coupe B2 2,3/SOHC/OHC 10v/NG, Audi/Coupe B2 2,3 quattro/SOHC/OHC 10v/NG, Audi/Coupe B3 2,3/SOHC/OHC 10v/NG, Audi/Coupe B3 2,3 quattro/SOHC/OHC 10v/NG, Audi/90 B3 2,0/SOHC/OHC 20v/NM, Audi/90 B3 2,0 quattro/SOHC/OHC 20v/NM, Audi/Coupe B3 2,0/SOHC/OHC 20v/NM, Audi/90 B3 2,0/SOHC/OHC 10v/PS, Audi/100 C3 Avant 2,2 E quattro/SOHC/OHC 10v/PX, Audi/100 C3 Saloon 2,2 E quattro/SOHC/OHC 10v/PX, Audi/100 C3 Avant 2,0 E Cat/SOHC/OHC 10v/RT, Audi/100 C3 Saloon 2,0 Cat/SOHC/OHC 10v/RT, Audi/90 B2 2,0/SOHC/OHC 10v/SK, Audi/Coupe B2 2,0/SOHC/OHC 10v/SK, Audi/100 C3 Avant 2,0/SOHC/OHC 10v/SL, Audi/100 C3 Saloon 2,0/SOHC/OHC 10v/SL, Audi/100 C2 Avant 2,1/SOHC/OHC 10v/WC, Audi/100 C2 Saloon 2,1/SOHC/OHC 10v/WC, Audi/100 C3 Avant 2,1/SOHC/OHC 10v/WC, Audi/100 C3 Saloon 2,1/SOHC/OHC 10v/WC, Audi/200 C2 Saloon 2,1 5E/SOHC/OHC 10v/WC, Audi/200 C3 Saloon 2,1 5E/SOHC/OHC 10v/WC, Audi/100 C2 Avant 1,9/SOHC/OHC 10v/WH, Audi/100 C2 Saloon 1,9/SOHC/OHC 10v/WH, Audi/100 C3 Avant 1,9/SOHC/OHC 10v/WH, Audi/100 C3 Saloon 1,9/SOHC/OHC 10v/WH, Audi/Quattro 2,1 Turbo/SOHC/OHC 10v/WR, Audi/100 C3 Avant 2,2/SOHC/OHC 10v/WU, Audi/100 C3 Saloon 2,2/SOHC/OHC 10v/WU, Audi/100 C3 Saloon 2,2 quattro/SOHC/OHC 10v/WX, Audi/Quattro 2,1 Turbo quattro/SOHC/OHC 10v/WX



APLIKAČNÍ KATALOG ACL

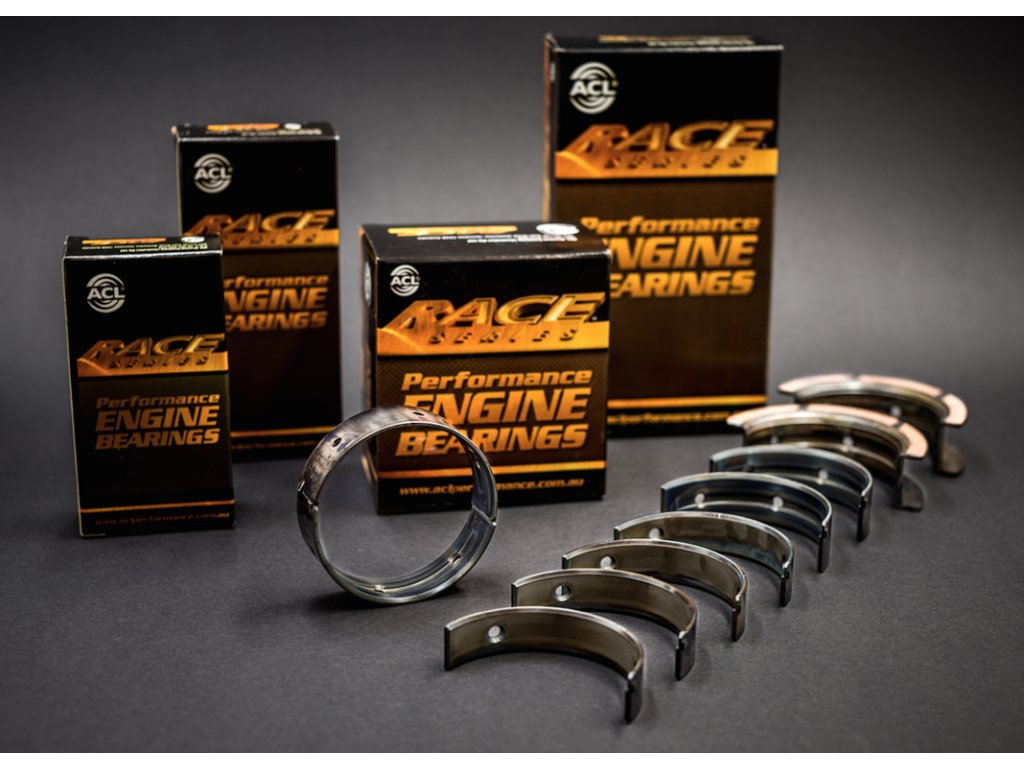

Obrázek je pouze ilustrační.

ACL je australská společnost s více než 70letou tradicí výroby přesných ložisek motorů, sídlící v Launcestonu, Tasmánie. Firma je významným dodavatelem OEM ložisek pro automobilový průmysl a zároveň nabízí rozsáhlý sortiment náhradních dílů pro globální aftermarket. Její produkty jsou známé svou vysokou kvalitou, precizností, robustní metalurgií a výkonem.

ACL má bohatou historii v motorsportu, sahající až do 60. let, kdy vyráběla ložiska pro tým Brabham ve Formuli 1. Její RACE Series Performance Engine Bearings si našly uplatnění v závodech jako australské Supercars, drag racing, rally a drift. Díky tomu jsou často první volbou pro motorové specialisty po celém světě.

Společnost nabízí jednu z největších nabídek ložisek motorů na aftermarketu, pokrývající přes 200 aplikací pro australské, americké, japonské, korejské a evropské vozy. Sortiment se neustále rozšiřuje o nově uvedené motory.

ACL disponuje vysokou úrovní vertikální integrace, zahrnující návrh a výrobu materiálů, nástrojů a složitých výrobních procesů. Firma se pyšní certifikacemi ISO9001:2015 (kvalita), ISO14001:2015 (ekologie) a ISO451001:2018 (bezpečnost práce).

Díky této kombinaci tradice, inovace a zaměření na výkon si ACL vybudovalo celosvětovou reputaci v oblasti motorových ložisek.
