Hlavní ložiska ACL "lágry" ACL Race Series 5M5563H-.25

Detailní popis produktu

 Hlavní ložiska ACL Race Series 5M5563H-.25



Popis výrobce:

The unique combination of design; metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.

Designed to withstand higher RPM conditions; ACL Race Series Engine Bearings are available for many of the popular 4; 6 & 8 cylinder applications and feature:

• High strength overlay plate with reduced thickness for improved fatigue properties
• Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
• Increased crush for improved bearing retention
• Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
• Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.

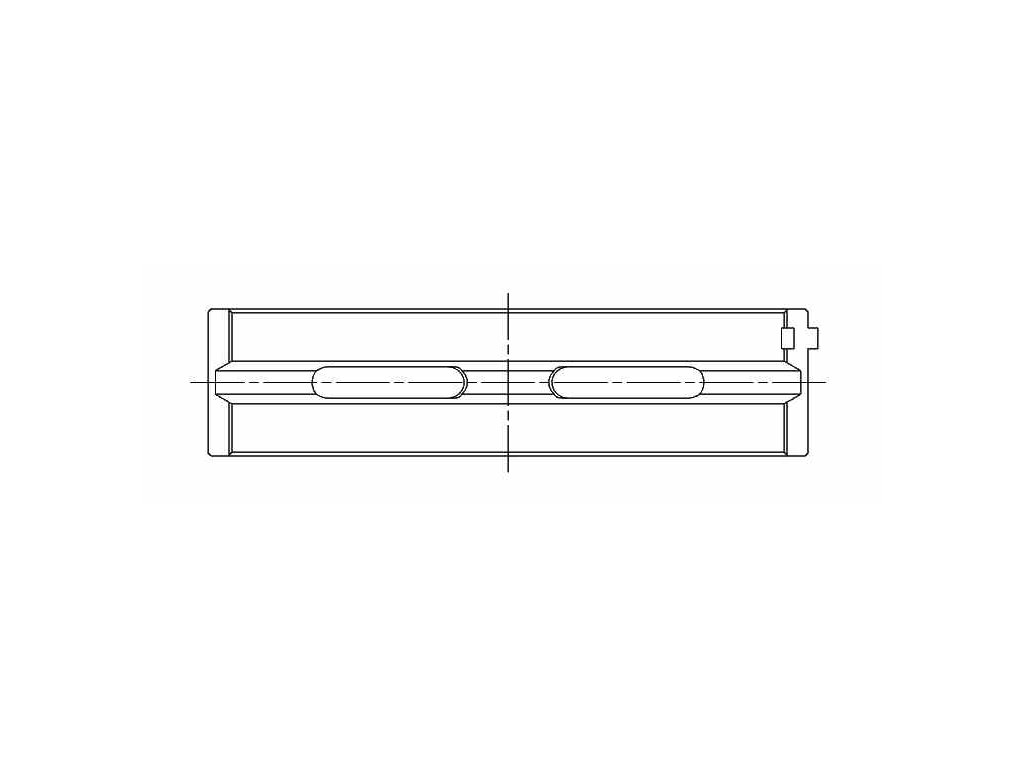

• 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
• Tight consistent wall tolerances to help you maintain consistent clearances.
• Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.



Tunnel [mm]: 63.000/63.019, Shaft [mm]: 57.958/57.978, Max. Wall: 2.504, Max. Length: 15.5, Half type: Upper & lower, Poznámka: Suits EA888 Gen 2 engines.>
Aplikace: Audi/A3 (8P1)/1,8 TFSI/BYT, Audi/A3 (8P1)/1,8 TFSI/BZB, Audi/A3 (8P1)/1,8 TFSI/CDAA, Audi/A3 (8P1)/2,0 TFSI/AXX, Audi/A3 (8P1)/2,0 TFSI/CAWB, Audi/A3 (8P1)/2,0 TFSI/CCZA, Audi/A3 (8P1)/2,0 TFSI quattro/AXX, Audi/A3 (8P1)/2,0 TFSI quattro/CCZA, Audi/A3 (8P1)/2,0 TFSI quattro/CBFA, Audi/A3 (8P1)/2,0 TFSI quattro/CCTA, Audi/A3 Convertible (8P7)/1,8 TFSI/BZB, Audi/A3 Convertible (8P7)/1,8 TFSI/CDAA, Audi/A3 Convertible (8P7)/2,0 TFSI/CAWB, Audi/A3 Convertible (8P7)/2,0 TFSI/CCZA, Audi/A3 Sportback (8PA)/1,8 TFSI/BYT, Audi/A3 Sportback (8PA)/1,8 TFSI/BZB, Audi/A3 Sportback (8PA)/1,8 TFSI/CDAA, Audi/A3 Sportback (8PA)/2,0 TFSI quattro/AXX, Audi/A3 Sportback (8PA)/2,0 TFSI quattro/CCZA, Audi/A3 Sportback (8PA)/2,0 TFSI quattro/CBFA, Audi/A3 Sportback (8PA)/2,0 TFSI quattro/CCTA, Audi/A3 Sportback (8PA)/2,0 TFSI/AXX, Audi/A3 Sportback (8PA)/2,0 TFSI/CAWB, Audi/A3 Sportback (8PA)/2,0 TFSI/CCZA, Audi/A3 Sportback (8PA)/2,0 TFSI/CBFA, Audi/A3 Sportback (8PA)/2,0 TFSI/CCTA, Audi/A4 Allroad B8 (8KH)/2,0 TFSI quattro/CDNC, Audi/A4 Allroad B8 (8KH)/2,0 TFSI quattro/CPMA, Audi/A4 Allroad B8 (8KH)/2,0 TFSI quattro/CPMB, Audi/A4 B8 (8K2)/1,8 TFSI/CABB, Audi/A4 B8 (8K2)/1,8 TFSI/CABA, Audi/A4 B8 (8K2)/2,0 TFSI/CDNC, Audi/A4 B8 (8K2)/2,0 TFSI/CAEB, Audi/A4 B8 (8K2)/2,0 TFSI/CDNB, Audi/A4 B8 (8K2)/2,0 TFSI/CAEA, Audi/A4 B8 (8K2)/2,0 TFSI/CFKA, Audi/A4 B8 (8K2)/2,0 TFSI quattro/CDNC, Audi/A4 B8 (8K2)/2,0 TFSI quattro/CAEB, Audi/A4 B8 (8K2)/2,0 TFSI quattro/CPMA, Audi/A4 B8 (8K2)/2,0 TFSI quattro/CFKA, Audi/A4 B8 (8K2)/2,0 TFSI flexible fuel quattro/CFKA, Audi/A4 B8 (8K2)/2,0 TFSI flexible fuel/CFKA, Audi/A4 B8 (8K2)/2,0 TFSI/CAED, Audi/A4 B8 (8K2)/2,0 TFSI quattro/CPMB, Audi/A4 B8 (8K2)/2,0 TFSI quattro/CAED, Audi/A4 B8 Avant (8K5)/1,8 TFSI/CABB, Audi/A4 B8 Avant (8K5)/2,0 TFSI/CDNC, Audi/A4 B8 Avant (8K5)/2,0 TFSI/CAEB, Audi/A4 B8 Avant (8K5)/2,0 TFSI quattro/CDNC, Audi/A4 B8 Avant (8K5)/2,0 TFSI quattro/CAEB, Audi/A4 B8 Avant (8K5)/2,0 TFSI/CDNB, Audi/A4 B8 Avant (8K5)/2,0 TFSI/CFKA, Audi/A4 B8 Avant (8K5)/2,0 TFSI flexible fuel quattro/CFKA, Audi/A4 B8 Avant (8K5)/2,0 TFSI flexible fuel/CFKA, Audi/A5 (8T3)/2,0 TFSI/CDNC, Audi/A5 (8T3)/2,0 TFSI quattro/CDNC, Audi/A5 (8T3)/2,0 TFSI quattro/CAEB, Audi/A5 (8T3)/2,0 TFSI quattro/CPMA, Audi/A5 (8T3)/2,0 TFSI/CDNB, Audi/A5 (8T3)/2,0 TFSI quattro/CPMB, Audi/A5 (8T3)/2,0 TFSI quattro/CAED, Audi/A5 Convertible (8F7)/2,0 TFSI/CDNB, Audi/A5 Convertible (8F7)/2,0 TFSI/CAEA, Audi/A5 Convertible (8F7)/2,0 TFSI/CDNC, Audi/A5 Convertible (8F7)/2,0 TFSI/CAEB, Audi/A5 Convertible (8F7)/2,0 TFSI quattro/CDNC, Audi/A5 Convertible (8F7)/2,0 TFSI quattro/CAEB, Audi/A5 Convertible (8F7)/2,0 TFSI quattro/CPMA, Audi/A5 Convertible (8F7)/2,0 TFSI quattro/CPMB, Audi/A5 Convertible (8F7)/2,0 TFSI/CAED, Audi/A5 Sportback (8TA)/2,0 TFSI/CDNC, Audi/A5 Sportback (8TA)/2,0 TFSI/CDNB, Audi/A5 Sportback (8TA)/2,0 TFSI quattro/CDNC, Audi/A6 C7 (4G2; 4GC)/2,0 TFSI/CAEB, Audi/A6 C7 (4G2; 4GC)/2,0 TFSI/CDNB, Audi/A6 C7 (4G2; 4GC)/2,0 TFSI Hybrid/CHJA, Audi/A6 C7 (4G2; 4GC)/2,0 TFSI quattro/CAEB, Audi/A6 C7 (4G2; 4GC)/2,0 TFSI/CAED, Audi/A6 C7 Avant (4G5; 4GD)/2,0 TFSI/CDNB, Audi/A8 D4 (4H2; 4H8; 4HC; 4HL)/2,0 TFSI hybrid/CHJA, Audi/Q3 (8UB; 8UG)/2,0 TFSI quattro/CCZC, Audi/Q3 (8UB; 8UG)/2,0 TFSI quattro/CPSA, Audi/Q3 (8UB; 8UG)/2,0 TFSI quattro/CCTA, Audi/Q5 (8RB)/2,0 TFSI quattro/CDNC, Audi/Q5 (8RB)/2,0 TFSI quattro/CAEB, Audi/Q5 (8RB)/2,0 TFSI quattro/CDNB, Audi/Q5 (8RB)/2,0 TFSI Hybrid quattro/CHJA, Audi/Q5 (8RB)/2,0 TFSI quattro/CPMB, Audi/Q5 Van (8RB)/2,0 TFSI quattro/CDNC, Audi/TT (8J3)/2,0 TFSI/CCTA, Audi/TT (8J3)/2,0 TFSI quattro/CCZA, Audi/TT (8J3)/2,0 TFSI quattro/CCTA, Audi/TT (8J3)/2,0 TFSI/CESA, Audi/TT (8J3)/2,0 TFSI quattro/CESA, Audi/TT (8J3)/2,0 TFSI quattro/CETA, Audi/TT Roadster (8J9)/2,0 TFSI/CCTA, Audi/TT Roadster (8J9)/2,0 TFSI quattro/CCZA, Audi/TT Roadster (8J9)/2,0 TFSI quattro/CCTA, Audi/TT Roadster (8J9)/2,0 TFSI quattro/CESA, Audi/TT Roadster (8J9)/2,0 TFSI quattro/CETA, Audi/TT Roadster (8J9)/2,0 TFSI/CESA, KTM/X-Bow Convertible/2,0/CAEB, Seat/ALHAMBRA (710; 711)/2,0 TSI/CCZA, Seat/ALTEA (5P1)/1,8 TFSI/BYT, Seat/ALTEA (5P1)/1,8 TFSI/BZB, Seat/ALTEA (5P1)/1,8 TFSI/CDAA, Seat/ALTEA XL (5P5; 5P8)/1,8 TFSI/BYT, Seat/ALTEA XL (5P5; 5P8)/1,8 TFSI/BZB, Seat/ALTEA XL (5P5; 5P8)/1,8 TFSI/CDAA, Seat/ALTEA XL (5P5; 5P8)/2,0 TFSI 4x4/CCZB, Seat/ALTEA XL (5P5; 5P8)/2,0 TFSI/CCZB, Seat/EXEO (3R2)/2,0 TFSI/CDND, Seat/EXEO ST (3R5)/2,0 TFSI/CDND, Seat/LEON (1P1)/1,8 TSI/BZB, Seat/LEON (1P1)/1,8 TSI/CDAA, Seat/LEON (1P1)/2,0 TFSI/CCZB, Seat/TOLEDO III (5P2)/1,8 TFSI/BYT, Seat/TOLEDO III (5P2)/1,8 TFSI/BZB, Seat/TOLEDO III (5P2)/1,8 TFSI/CDAA, Skoda/OCTAVIA II (1Z3)/1,8 TSI/BZB, Skoda/OCTAVIA II (1Z3)/1,8 TSI/CDAA, Skoda/OCTAVIA II (1Z3)/2,0 TFSI/CCZA, Skoda/OCTAVIA II Combi (1Z5)/1,8 TSI/BZB, Skoda/OCTAVIA II Combi (1Z5)/1,8 TSI/CDAA, Skoda/OCTAVIA II Combi (1Z5)/2,0 TFSI/CCZA, Skoda/SUPERB II (3T4)/1,8 TSI/BZB, Skoda/SUPERB II (3T4)/1,8 TSI/CDAA, Skoda/SUPERB II (3T4)/2,0 TFSI/CCZA, Skoda/SUPERB II (3T5)/2,0 TFSI/CCZA, Volkswagen/AMAROK (2HA; 2HB; S1B; S6B; S7A; S7B)/2,0 TSI/CFPA, Volkswagen/BEETLE (5C1; 5C2)/2,0 TFSI/CCTA, Volkswagen/BEETLE (5C1; 5C2)/2,0 TFSI/CBFA, Volkswagen/BEETLE (5C1; 5C2)/2,0 TFSI/CCZA, Volkswagen/BEETLE Convertible (5C7; 5C8)/2,0 TFSI/CCTA, Volkswagen/BEETLE Convertible (5C7; 5C8)/2,0 TFSI/CBFA, Volkswagen/BEETLE Convertible (5C7; 5C8)/2,0 TFSI/CCZA, Volkswagen/CC B7 (358)/2,0 TSI/CCZB, Volkswagen/EOS (1F7; 1F8)/2,0 TFSI/CAWB, Volkswagen/EOS (1F7; 1F8)/2,0 TFSI/CCTA, Volkswagen/EOS (1F7; 1F8)/2,0 TFSI/CBFA, Volkswagen/EOS (1F7; 1F8)/2,0 TFSI/CCZA, Volkswagen/EOS (1F7; 1F8)/2,0 TSI/CCZB, Volkswagen/GOLF V (1K1)/2,0 GTI/AXX, Volkswagen/GOLF V (1K1)/2,0 GTI/CAWB, Volkswagen/GOLF V (1K1)/2,0 GTI/CCTA, Volkswagen/GOLF V (1K1)/2,0 GTI/CBFA, Volkswagen/GOLF V Variant (1K5)/2,0 TFSI/CAWB, Volkswagen/GOLF V Variant (1K5)/2,0 TFSI/CCTA, Volkswagen/GOLF V Variant (1K5)/2,0 TFSI/CBFA, Volkswagen/GOLF VI (5K1)/2,0 GTi/CCZB, Volkswagen/GOLF VI (5K1)/2,0 GTi/CCTA, Volkswagen/GOLF VI (5K1)/2,0 GTi/CBFA, Volkswagen/GOLF VI (5K1)/2,0 GTi/CCZA, Volkswagen/GOLF VI Convertible (517)/2,0 GTI/CCZB, Volkswagen/GOLF VI Van (5K1_)/2,0 GTi/CCZB, Volkswagen/GOLF VI Variant (AJ5)/2,0 TFSI/CCZA, Volkswagen/JETTA III (1K2)/2,0 TFSI/AXX, Volkswagen/JETTA III (1K2)/2,0 TFSI/CAWB, Volkswagen/JETTA III (1K2)/2,0 TFSI/CCTA, Volkswagen/JETTA III (1K2)/2,0 TFSI/CBFA, Volkswagen/JETTA IV (162; 163; AV3; AV2)/2,0 TFSI/CCTA, Volkswagen/JETTA IV (162; 163; AV3; AV2)/2,0 TFSI/CBFA, Volkswagen/JETTA IV (162; 163; AV3; AV2)/2,0 TFSI/CCZA, Volkswagen/MULTIVAN V (7HM; 7HN; 7HF; 7EF; 7EM; 7EN)/2,0 TSI/CJKA, Volkswagen/MULTIVAN V (7HM; 7HN; 7HF; 7EF; 7EM; 7EN)/2,0 TSI 4motion/CJKA, Volkswagen/MULTIVAN V (7HM; 7HN; 7HF; 7EF; 7EM; 7EN)/2,0 TSI/CJKB, Volkswagen/MULTIVAN VI (SGF; SGM; SGN; SHM; SHN)/2,0 TSI/CJKB, Volkswagen/MULTIVAN VI (SGF; SGM; SGN; SHM; SHN)/2,0 TSI/CJKA, Volkswagen/MULTIVAN VI (SGF; SGM; SGN; SHM; SHN)/2,0 TSI 4motion/CJKA, Volkswagen/PASSAT ALLTRACK B7 (365)/2,0 TSI 4motion/CCZB, Volkswagen/PASSAT B6 (3C2)/1,8 TSI/BZB, Volkswagen/PASSAT B6 (3C2)/1,8 TSI/CDAA, Volkswagen/PASSAT B6 (3C2)/1,8 TSI/CDAB, Volkswagen/PASSAT B6 (3C2)/1,8 TSI/CGYA, Volkswagen/PASSAT B6 (3C2)/2,0 TFSI/AXX, Volkswagen/PASSAT B6 (3C2)/2,0 TFSI/CAWB, Volkswagen/PASSAT B6 (3C2)/2,0 TFSI/CCTA, Volkswagen/PASSAT B6 (3C2)/2,0 TFSI/CBFA, Volkswagen/PASSAT B6 (3C2)/2,0 TFSI/CCZA, Volkswagen/PASSAT B6 Variant (3C5)/1,8 TSI/BZB, Volkswagen/PASSAT B6 Variant (3C5)/1,8 TSI/CDAA, Volkswagen/PASSAT B6 Variant (3C5)/1,8 TSI/CDAB, Volkswagen/PASSAT B6 Variant (3C5)/1,8 TSI/CGYA, Volkswagen/PASSAT B6 Variant (3C5)/2,0 TFSI/AXX, Volkswagen/PASSAT B6 Variant (3C5)/2,0 TFSI/CAWB, Volkswagen/PASSAT B6 Variant (3C5)/2,0 TFSI/CCTA, Volkswagen/PASSAT B6 Variant (3C5)/2,0 TFSI/CBFA, Volkswagen/PASSAT B6 Variant (3C5)/2,0 TFSI/CCZA, Volkswagen/PASSAT B7 (362)/2,0 TSI/CCZB, Volkswagen/PASSAT B7 (365)/2,0 TFSI/CCZB, Volkswagen/PASSAT B7 Variant (365)/2,0 TSI/CCZB, Volkswagen/PASSAT CC B6 (357)/1,8 TSI/BZB, Volkswagen/PASSAT CC B6 (357)/1,8 TSI/CDAA, Volkswagen/PASSAT CC B6 (357)/1,8 TSI/CDAB, Volkswagen/PASSAT CC B6 (357)/1,8 TSI/CGYA, Volkswagen/PASSAT CC B6 (357)/2,0 TFSI/CAWB, Volkswagen/PASSAT CC B6 (357)/2,0 TFSI/CCTA, Volkswagen/PASSAT CC B6 (357)/2,0 TFSI/CBFA, Volkswagen/PASSAT CC B6 (357)/2,0 TFSI/CCZA, Volkswagen/PASSAT CC B6 (357)/2,0 TSI/CCZB, Volkswagen/SCIROCCO III (137; 138)/2,0 TFSI/CAWB, Volkswagen/SCIROCCO III (137; 138)/2,0 TSI/CCZB, Volkswagen/SCIROCCO Van (137)/2,0 TFSi/CCZB, Volkswagen/SHARAN (7N1; 7N2)/2,0 TFSI/CCZA, Volkswagen/SHARAN VAN (7N1; 7N2)/2,0 TSI/CCZA, Volkswagen/TIGUAN (5N_)/2,0 TFSI 4motion/CAWA, Volkswagen/TIGUAN (5N_)/2,0 TFSI 4motion/CCTB, Volkswagen/TIGUAN (5N_)/2,0 TFSI 4motion/CCZC, Volkswagen/TIGUAN (5N_)/2,0 TFSI 4motion/CAWB, Volkswagen/TIGUAN (5N_)/2,0 TFSI 4motion/CCTA, Volkswagen/TIGUAN (5N_)/2,0 TFSI 4motion/CCZA, Volkswagen/TIGUAN (5N_)/2,0 TSI 4motion/CCZD, Volkswagen/TIGUAN (5N_)/2,0 TSI 4motion/CCZB, Volkswagen/TIGUAN VAN (5N_)/2,0 TSI 4motion (5N1)/CCZA, Volkswagen/TIGUAN VAN (5N_)/2,0 TSI 4motion (5N1)/CCZC, Volkswagen/TIGUAN VAN (5N_)/2,0 TSI 4motion (5N2)/CCZB, Volkswagen/TRANSPORTER V (7HB; 7HJ; 7EB; 7EJ)/2,0 TSI/CJKA, Volkswagen/TRANSPORTER V (7HB; 7HJ; 7EB; 7EJ)/2,0 TSI 4motion/CJKA, Volkswagen/TRANSPORTER V (7HB; 7HJ; 7EB; 7EJ)/2,0 TSI/CJKB, Volkswagen/TRANSPORTER V (7JD; 7JE; 7JL; 7JY; 7JZ;/2,0 TSI/CJKB, Volkswagen/TRANSPORTER V (7HA; 7HH; 7EA; 7EH)/2,0 TSI/CJKA, Volkswagen/TRANSPORTER V (7HA; 7HH; 7EA; 7EH)/2,0 TSI 4motion/CJKA, Volkswagen/TRANSPORTER V (7HA; 7HH; 7EA; 7EH)/2,0 TSI/CJKB, Volkswagen/TRANSPORTER VI (SFD; SFE; SFL; SFZ; SJD/2,0 TSI/CJKB, Volkswagen/TRANSPORTER VI (SGA; SGH; SHA; SHH)/2,0 TSI/CJKB, Volkswagen/TRANSPORTER VI (SGA; SGH; SHA; SHH)/2,0 TSI/CJKA, Volkswagen/TRANSPORTER VI (SGA; SGH; SHA; SHH)/2,0 TSI 4motion/CJKA, Volkswagen/TRANSPORTER VI/2,0 TSI/CJKB, Volkswagen/CARAVELLE VI/2,0 TSI/CJKB, Volkswagen/TRANSPORTER VI/2,0 TSI/CJKA, Volkswagen/CARAVELLE VI/2,0 TSI/CJKA, Volkswagen/TRANSPORTER VI/2,0 TSI 4motion/CJKA, Volkswagen/CARAVELLE VI/2,0 TSI 4motion/CJKA



APLIKAČNÍ KATALOG ACL

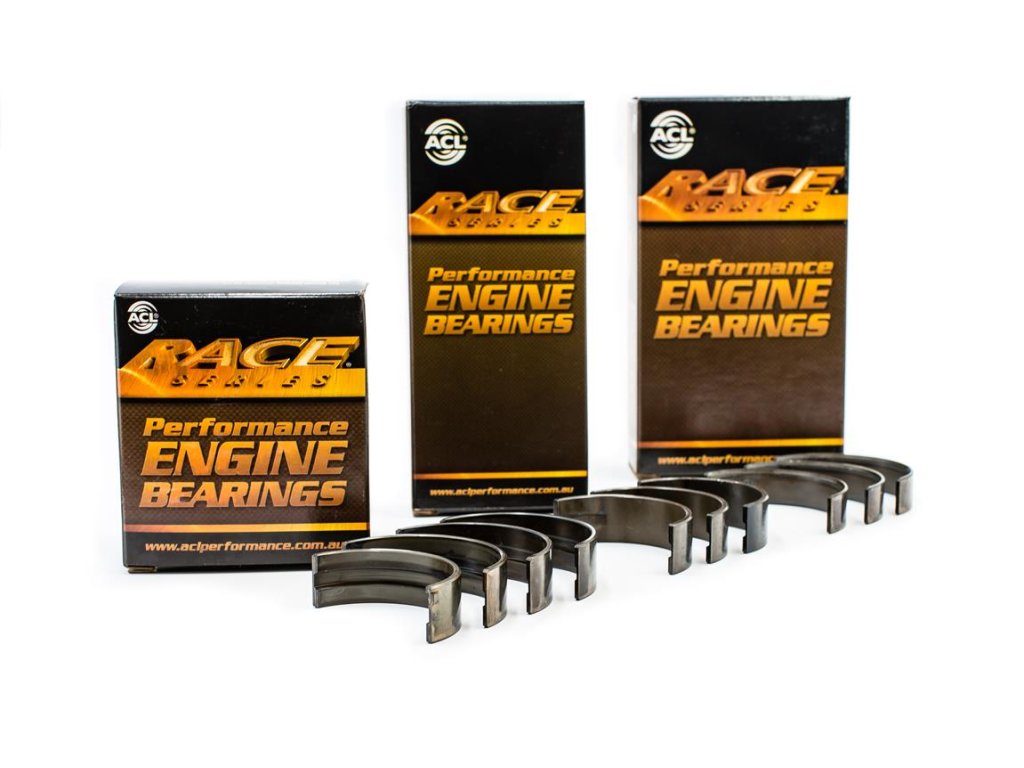

Obrázek je pouze ilustrační.

ACL je australská společnost s více než 70letou tradicí výroby přesných ložisek motorů, sídlící v Launcestonu, Tasmánie. Firma je významným dodavatelem OEM ložisek pro automobilový průmysl a zároveň nabízí rozsáhlý sortiment náhradních dílů pro globální aftermarket. Její produkty jsou známé svou vysokou kvalitou, precizností, robustní metalurgií a výkonem.

ACL má bohatou historii v motorsportu, sahající až do 60. let, kdy vyráběla ložiska pro tým Brabham ve Formuli 1. Její RACE Series Performance Engine Bearings si našly uplatnění v závodech jako australské Supercars, drag racing, rally a drift. Díky tomu jsou často první volbou pro motorové specialisty po celém světě.

Společnost nabízí jednu z největších nabídek ložisek motorů na aftermarketu, pokrývající přes 200 aplikací pro australské, americké, japonské, korejské a evropské vozy. Sortiment se neustále rozšiřuje o nově uvedené motory.

ACL disponuje vysokou úrovní vertikální integrace, zahrnující návrh a výrobu materiálů, nástrojů a složitých výrobních procesů. Firma se pyšní certifikacemi ISO9001:2015 (kvalita), ISO14001:2015 (ekologie) a ISO451001:2018 (bezpečnost práce).

Díky této kombinaci tradice, inovace a zaměření na výkon si ACL vybudovalo celosvětovou reputaci v oblasti motorových ložisek.
