Hlavní ložiska ACL "lágry" 5M5585H-.025

Detailní popis produktu

 Hlavní ložiska 5M5585H-.025



Popis výrobce:

The unique combination of design; metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.

Designed to withstand higher RPM conditions; ACL Race Series Engine Bearings are available for many of the popular 4; 6 & 8 cylinder applications and feature:

• High strength overlay plate with reduced thickness for improved fatigue properties
• Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
• Increased crush for improved bearing retention
• Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
• Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.

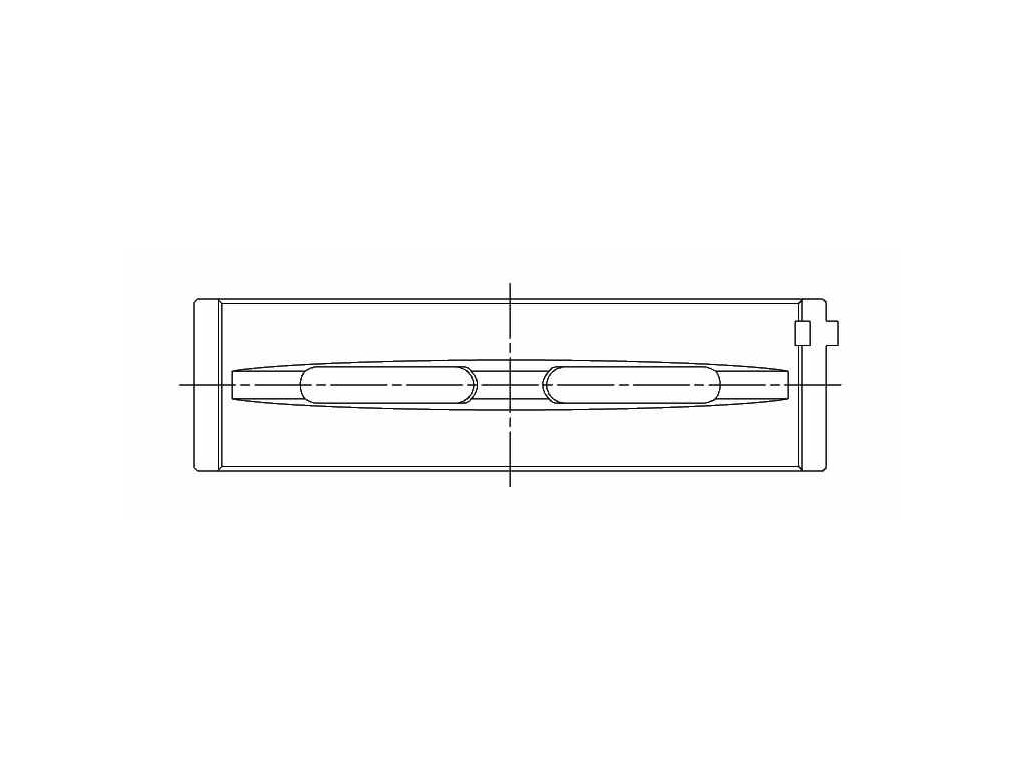

• 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
• Tight consistent wall tolerances to help you maintain consistent clearances.
• Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.



Half type: Upper & lower, null: "Suits EA888 Gen 3 engines., Tunnel [mm]: 57.000/57.019, Shaft [mm]: 51.958/51.978, Max. Wall: 2.505, Max. Length: 15.50>
Aplikace: Audi/A1 (8X1; 8XK)/S1 quattro/CWZA, Audi/A1 Sportback (8XA; 8XF)/S1 quattro/CWZA, Audi/A3 (8V1; 8VK)/S3 quattro/CJXC, Audi/A3 (8V1; 8VK)/S3 quattro/CJXB, Audi/A3 (8V1; 8VK)/S3 quattro/CJXF, Audi/A3 (8V1; 8VK)/S3 quattro/CJXG, Audi/A3 (8V1; 8VK)/S3 quattro/DJHA, Audi/A3 Cabriolet (8V7; 8VE)/S3 quattro/CJXC, Audi/A3 Cabriolet (8V7; 8VE)/S3 quattro/DNUE, Audi/A3 Limousine (8VS; 8VM)/S3 quattro/CJXB, Audi/A3 Limousine (8VS; 8VM)/S3 quattro/CJXC, Audi/A3 Limousine (8VS; 8VM)/S3 quattro/DNUE, Audi/A3 Limousine (8VS; 8VM)/S3 quattro/CJXF, Audi/A3 Limousine (8VS; 8VM)/S3 quattro/CYFB, Audi/A3 Limousine (8VS; 8VM)/S3 quattro/DJJA, Audi/A3 Limousine (8VS; 8VM)/S3 quattro/DLRA, Audi/A3 Limousine (8VS; 8VM)/2,0 TFSI/CNTC, Audi/A3 Limousine (8VS; 8VM)/2,0 TFSI/CHHB, Audi/A3 Limousine (8VS; 8VM)/S3 quattro/CJXG, Audi/A3 Limousine (8VS; 8VM)/S3 quattro/DJHA, Audi/A3 Sportback (8VA; 8VF)/S3 quattro/CJXC, Audi/A3 Sportback (8VA; 8VF)/S3 quattro/DNUE, Audi/A3 Sportback (8VA; 8VF)/S3 quattro/CJXB, Audi/A3 Sportback (8VA; 8VF)/S3 quattro/CJXF, Audi/A3 Sportback (8VA; 8VF)/S3 quattro/CJXG, Audi/A3 Sportback (8VA; 8VF)/S3 quattro/DJHA, Audi/A4 Allroad B8 (8KH)/2,0 TFSI quattro/CNCD, Audi/A4 Allroad B9 (8WH; 8WJ)/2,0 TFSI quattro/CYRB, Audi/A4 Allroad B9 (8WH; 8WJ)/2,0 TFSI quattro/CYMC, Audi/A4 Allroad B9 (8WH; 8WJ)/2,0 TFSI quattro/DLHB, Audi/A4 Allroad B9 (8WH; 8WJ)/2,0 TFSI quattro/CYRC, Audi/A4 B8 (8K2)/1,8 TFSI/CDHB, Audi/A4 B8 (8K2)/1,8 TFSI/CDHA, Audi/A4 B8 (8K2)/1,8 TFSI quattro/CDHB, Audi/A4 B8 (8K2)/2,0 TFSI/CNCD, Audi/A4 B8 (8K2)/2,0 TFSI quattro/CNCD, Audi/A4 B8 Avant (8K5)/1,8 TFSI/CDHB, Audi/A4 B8 Avant (8K5)/1,8 TFSI/CDHA, Audi/A4 B8 Avant (8K5)/1,8 TFSI quattro/CDHB, Audi/A4 B8 Avant (8K5)/2,0 TFSI quattro/CNCD, Audi/A4 B8 Avant (8K5)/2,0 TFSI/CNCD, Audi/A4 B9 (8W2; 8WC)/2,0 TFSI quattro/CYRB, Audi/A4 B9 (8W2; 8WC)/2,0 TFSI quattro/CYMC, Audi/A4 B9 (8W2; 8WC)/2,0 TFSI/CYRB, Audi/A4 B9 (8W2; 8WC)/2,0 TFSI/CYMC, Audi/A4 B9 (8W2; 8WC)/2,0 TFSI/CYRC, Audi/A4 B9 (8W2; 8WC)/2,0 TFSI quattro/CYRC, Audi/A4 B9 Avant (8W5; 8WD)/2,0 TFSI quattro/CYRB, Audi/A4 B9 Avant (8W5; 8WD)/2,0 TFSI quattro/CYMC, Audi/A4 B9 Avant (8W5; 8WD)/2,0 TFSI quattro/CYRC, Audi/A4 B9 Avant (8W5; 8WD)/2,0 TFSI/CYRC, Audi/A4 B9 Avant (8W5; 8WD)/2,0 TFSI/CYRB, Audi/A4 B9 Avant (8W5; 8WD)/2,0 TFSI/CYMC, Audi/A5 (8T3)/1,8 TFSI/CDHB, Audi/A5 (8T3)/2,0 TFSI quattro/CNCD, Audi/A5 (8T3)/2,0 TFSI/CNCD, Audi/A5 (8T3)/2,0 TFSI/CNCE, Audi/A5 (8T3)/2,0 TFSI quattro/CNCE, Audi/A5 (F53; F5P)/2,0 TFSI quattro/CYRB, Audi/A5 (F53; F5P)/2,0 TFSI quattro/CYMC, Audi/A5 (F53; F5P)/2,0 TFSI quattro/DLHB, Audi/A5 (F53; F5P)/2,0 TFSI quattro/CYRC, Audi/A5 (F53; F5P)/2,0 TFSI/CYRB, Audi/A5 Cabriolet (8F7)/1,8 TFSI/CDHB, Audi/A5 Cabriolet (8F7)/2,0 TFSI/CNCD, Audi/A5 Cabriolet (8F7)/2,0 TFSI quattro/CNCD, Audi/A5 Cabriolet (8F7)/2,0 TFSI quattro/CNCE, Audi/A5 Cabriolet (8F7)/2,0 TFSI/CNCE, Audi/A5 Cabriolet (F57; F5E)/2,0 TFSI quattro/CYRB, Audi/A5 Cabriolet (F57; F5E)/2,0 TFSI quattro/CYMC, Audi/A5 Cabriolet (F57; F5E)/2,0 TFSI quattro/DLHB, Audi/A5 Cabriolet (F57; F5E)/2,0 TFSI/CYRB, Audi/A5 Sportback (8TA)/1,8 TFSI/CDHB, Audi/A5 Sportback (8TA)/2,0 TFSI quattro/CNCD, Audi/A5 Sportback (8TA)/2,0 TFSI/CNCD, Audi/A5 Sportback (8TA)/2,0 TFSI/CNCE, Audi/A5 Sportback (8TA)/2,0 TFSI quattro/CNCE, Audi/A5 Sportback (F5A; F5F)/2,0 TFSI quattro/CYRB, Audi/A5 Sportback (F5A; F5F)/2,0 TFSI quattro/CYMC, Audi/A5 Sportback (F5A; F5F)/2,0 TFSI quattro/DLHB, Audi/A5 Sportback (F5A; F5F)/2,0 TFSI quattro/CYRC, Audi/A5 Sportback (F5A; F5F)/2,0 TFSI/CYRB, Audi/A6 C7 (4G2; 4GC)/2,0 TFSI quattro/CYPA, Audi/A6 C7 (4G2; 4GC)/2,0 TFSI quattro/CYNB, Audi/A6 C7 (4G2; 4GC)/2,0 TFSI/CYPA, Audi/A6 C7 (4G2; 4GC)/2,0 TFSI/CYNB, Audi/A6 C7 (4G2; 4GC)/2,0 TFSI quattro/CYPB, Audi/A6 C7 Avant (4G5; 4GD)/2,0 TFSI/CYPA, Audi/A6 C7 Avant (4G5; 4GD)/2,0 TFSI/CYNB, Audi/A6 C7 Avant (4G5; 4GD)/2,0 TFSI quattro/CYPB, Audi/A6 C7 Avant (4G5; 4GD)/2,0 TFSI quattro/CYPA, Audi/A7 Sportback (4GA; 4GF)/2,0 TFSI/CYPA, Audi/A7 Sportback (4GA; 4GF)/2,0 TFSI quattro/CYPB, Audi/A7 Sportback (4GA; 4GF)/2,0 TFSI quattro/CYPA, Audi/A7 Sportback (4GA; 4GF)/2,0 TFSI quattro/CYNB, Audi/A8 D4 (4H2; 4H8; 4HC; 4HL)/2,0 TFSI quattro/CYPA, Audi/Q2 (GAB; GAG)/SQ2 TFSI quattro/DNUE, Audi/Q2 (GAB; GAG)/SQ2 TFSI quattro/DNFC, Audi/Q3 (8UB; 8UG)/2,0 TFSI quattro/CULB, Audi/Q3 (8UB; 8UG)/2,0 TFSI/CULB, Audi/Q5 (8RB)/2,0 TFSI quattro/CNCB, Audi/Q5 (8RB)/2,0 TFSI quattro/CNCD, Audi/Q5 (8RB)/2,0 TFSI quattro/CNCE, Audi/Q7 (4MB; 4MG)/2,0 TFSI quattro/CYRB, Audi/Q7 (4MB; 4MG)/2,0 TFSI quattro/CYMC, Audi/Q7 (4MB; 4MG)/2,0 TFSI quattro/DMFB, Audi/TT (FV3; FVP)/2,0 TFSI quattro/CHHC, Audi/TT (FV3; FVP)/2,0 TFSI/CHHC, Audi/TT (FV3; FVP)/2,0 TTS quattro/CJXG, Audi/TT (FV3; FVP)/2,0 TTS quattro/CJXF, Audi/TT (FV3; FVP)/2,0 TTS quattro/CYFB, Audi/TT (FV3; FVP)/2,0 TTS quattro/DLRA, Audi/TT (FV3; FVP)/2,0 TTS quattro/DNUF, Audi/TT Roadster (FV9; FVR)/2,0 TFSI quattro/CHHC, Audi/TT Roadster (FV9; FVR)/2,0 TTS quattro/CJXG, Audi/TT Roadster (FV9; FVR)/2,0 TFSI/CHHC, Audi/TT Roadster (FV9; FVR)/2,0 TTS quattro/CJXF, Audi/TT Roadster (FV9; FVR)/2,0 TTS quattro/DNUF, Cupra/ATECA (KH7; KHP)/2,0 TSI 4Drive/DNUE, Cupra/ATECA (KH7; KHP)/2,0 TSI 4Drive/DNFC, Seat/ALHAMBRA (710; 711)/2,0 TSI/DEDA, Seat/EXEO (3R2)/1,8 TSI/CDHB, Seat/EXEO (3R2)/1,8 TSI/CDHA, Seat/EXEO ST (3R5)/1,8 TSI/CDHB, Seat/EXEO ST (3R5)/1,8 TSI/CDHA, Seat/LEON (5F1)/2,0 Cupra/CJXE, Seat/LEON (5F1)/2,0 Cupra/CJXA, Seat/LEON (5F1)/2,0 Cupra/CJXH, Seat/LEON (5F1)/2,0 Cupra/DNUC, Seat/LEON SC (5F5)/2,0 Cupra/CJXA, Seat/LEON SC (5F5)/2,0 Cupra/CJXE, Seat/LEON SC (5F5)/2,0 Cupra/CJXH, Seat/LEON ST (5F8)/2,0 Cupra/CJXE, Seat/LEON ST (5F8)/2,0 Cupra/CJXA, Seat/LEON ST (5F8)/2,0 Cupra/CJXH, Seat/LEON ST (5F8)/2,0 Cupra/DNUC, Seat/LEON ST (5F8)/2,0 Cupra 4Drive/CJXC, Seat/LEON ST (5F8)/2,0 Cupra 4Drive/DNUE, Skoda/OCTAVIA II (1Z3)/1,8 TSI/CDAB, Skoda/OCTAVIA II Combi (1Z5)/1,8 TSI 4x4/CDAB, Skoda/OCTAVIA II Combi (1Z5)/1,8 TSI/CDAB, Skoda/OCTAVIA III (5E3; NL3; NR3)/2,0 TSI RS/CHHB, Skoda/OCTAVIA III (5E3; NL3; NR3)/2,0 TSI RS/CHHA, Skoda/OCTAVIA III Combi (5E5; 5E6)/2,0 TSI RS/CHHB, Skoda/OCTAVIA III Combi (5E5; 5E6)/2,0 TSI RS/CHHA, Skoda/SUPERB II (3T4)/1,8 TSI/CDAB, Skoda/SUPERB II (3T4)/1,8 TSI 4x4/CDAB, Skoda/SUPERB II (3T5)/1,8 TSI 4x4/CDAB, Skoda/SUPERB II (3T5)/1,8 TSI/CDAB, Skoda/SUPERB III (3V3)/2,0 TSI/CHHB, Skoda/SUPERB III (3V3)/2,0 TSI 4x4/DNUA, Skoda/SUPERB III (3V3)/2,0 TSI 4x4/CJXA, Skoda/SUPERB III (3V3)/2,0 TSI 4x4/DNFE, Skoda/SUPERB III (3V5)/2,0 TSI 4x4/DNUA, Skoda/SUPERB III (3V5)/2,0 TSI 4x4/CJXA, Skoda/SUPERB III (3V5)/2,0 TSI 4x4/DNFE, Skoda/SUPERB III (3V5)/2,0 TSI/CHHB, Skoda/YETI (5L)/1,8 TSI 4x4/CDAB, Volkswagen/ARTEON (3H7; 3H8)/2,0 TSI 4motion/DLRB, Volkswagen/ARTEON (3H7; 3H8)/2,0 TSI 4motion/DNUA, Volkswagen/BEETLE (5C1; 5C2)/2,0 TSI/CPLA, Volkswagen/BEETLE (5C1; 5C2)/2,0 TSI/CPPA, Volkswagen/BEETLE (5C1; 5C2)/2,0 TSI/CULC, Volkswagen/BEETLE Cabriolet (5C7; 5C8)/2,0 TSI/CPLA, Volkswagen/BEETLE Cabriolet (5C7; 5C8)/2,0 TSI/CPPA, Volkswagen/BEETLE Cabriolet (5C7; 5C8)/2,0 TSI/CULC, Volkswagen/GOLF VI Cabriolet (517)/2,0 TSI/CULC, Volkswagen/GOLF VII (5G1; BQ1; BE1; BE2)/2,0 GTI/CHHA, Volkswagen/GOLF VII (5G1; BQ1; BE1; BE2)/2,0 GTI/CXDB, Volkswagen/GOLF VII (5G1; BQ1; BE1; BE2)/2,0 GTI/CHHB, Volkswagen/GOLF VII (5G1; BQ1; BE1; BE2)/2,0 GTI/CXDA, Volkswagen/GOLF VII (5G1; BQ1; BE1; BE2)/2,0 GTI/CXCB, Volkswagen/GOLF VII (5G1; BQ1; BE1; BE2)/2,0 GTI/CNTC, Volkswagen/GOLF VII (5G1; BQ1; BE1; BE2)/2,0 R 4motion/CJXB, Volkswagen/GOLF VII (5G1; BQ1; BE1; BE2)/2,0 R 4motion/CJXC, Volkswagen/GOLF VII (5G1; BQ1; BE1; BE2)/2,0 R 4motion/DNUE, Volkswagen/GOLF VII (5G1; BQ1; BE1; BE2)/2,0 GTI Clubsport/CJXE, Volkswagen/GOLF VII (5G1; BQ1; BE1; BE2)/2,0 R 360S 4motion/CJXC, Volkswagen/GOLF VII (5G1; BQ1; BE1; BE2)/2,0 R 4motion/CJXD, Volkswagen/GOLF VII (5G1; BQ1; BE1; BE2)/2,0 R 4motion/DJHB, Volkswagen/GOLF VII (5G1; BQ1; BE1; BE2)/2,0 R 4motion/DNUC, Volkswagen/GOLF VII (5G1; BQ1; BE1; BE2)/2,0 GTI TCR/DNUC, Volkswagen/GOLF VII (5G1; BQ1; BE1; BE2)/2,0 GTI TCR/CJXH, Volkswagen/GOLF VII Van (5G1)/2,0 GTi/CHHB, Volkswagen/GOLF VII Van (5G1)/2,0 GTi/CHHA, Volkswagen/GOLF VII Variant (BA5; BV5)/2,0 R 4motion/CJXB, Volkswagen/GOLF VII Variant (BA5; BV5)/2,0 R 4motion/CJXC, Volkswagen/GOLF VII Variant (BA5; BV5)/2,0 R 4motion/DNUE, Volkswagen/GOLF VII Variant (BA5; BV5)/2,0 R 4motion/CJXD, Volkswagen/GOLF VII Variant (BA5; BV5)/2,0 R 4motion/DJHB, Volkswagen/GOLF VII Variant (BA5; BV5)/2,0 R 4motion/DNUC, Volkswagen/JETTA IV (162; 163; AV3; AV2)/1,8 TSI/CPKA, Volkswagen/JETTA IV (162; 163; AV3; AV2)/1,8 TSI/CPRA, Volkswagen/JETTA IV (162; 163; AV3; AV2)/2,0 TSI/CPLA, Volkswagen/JETTA IV (162; 163; AV3; AV2)/2,0 TSI/CPPA, Volkswagen/PASSAT ALLTRACK B7 (365)/1,8 TSI/CDAB, Volkswagen/PASSAT ALLTRACK B8 Variant (3G5; CB5)/2,0 TSI 4motion/CHHB, Volkswagen/PASSAT ALLTRACK B8 Variant (3G5; CB5)/2,0 TSI 4motion/DNUA, Volkswagen/PASSAT ALLTRACK B8 Variant (3G5; CB5)/2,0 TSI 4motion/CJXA, Volkswagen/PASSAT ALLTRACK B8 Variant (3G5; CB5)/2,0 TSI 4motion/DNFE, Volkswagen/PASSAT B6 (3C2)/1,8 TSI/CDAB, Volkswagen/PASSAT B6 (3C2)/1,8 TSI/CGYA, Volkswagen/PASSAT B6 Variant (3C5)/1,8 TSI/CDAB, Volkswagen/PASSAT B6 Variant (3C5)/1,8 TSI/CGYA, Volkswagen/PASSAT B7 (362)/1,8 TSI/CDAB, Volkswagen/PASSAT B7 Variant (365)/1,8 TSI/CDAB, Volkswagen/PASSAT B8 (3G2; CB2)/2,0 TSI/CHHB, Volkswagen/PASSAT B8 (3G2; CB2)/2,0 TSI/CXDA, Volkswagen/PASSAT B8 (3G2; CB2)/2,0 TSI 4motion/CJXA, Volkswagen/PASSAT B8 (3G2; CB2)/2,0 TSI 4motion/DNFE, Volkswagen/PASSAT B8 (3G2; CB2)/2,0 TSI 4motion/DNUA, Volkswagen/PASSAT B8 Variant (3G5; CB5)/2,0 TSI/CHHB, Volkswagen/PASSAT B8 Variant (3G5; CB5)/2,0 TSI/CXDA, Volkswagen/PASSAT B8 Variant (3G5; CB5)/2,0 TSI 4motion/CJXA, Volkswagen/PASSAT B8 Variant (3G5; CB5)/2,0 TSI 4motion/DNFE, Volkswagen/PASSAT B8 Variant (3G5; CB5)/2,0 TSI 4motion/DNUA, Volkswagen/PASSAT CC B6 (357)/1,8 TSI/CDAB, Volkswagen/PASSAT CC B6 (357)/1,8 TSI/CGYA, Volkswagen/SCIROCCO III (137; 138)/2,0 TSI/CULC, Volkswagen/SCIROCCO III (137; 138)/2,0 TSI/CULA, Volkswagen/SHARAN (7N1; 7N2)/2,0 TSI/DEDA, Volkswagen/T-ROC (A11; D11)/2,0 R 4motion/DNUE, Volkswagen/T-ROC (A11; D11)/2,0 R 4motion/DNFC, Volkswagen/TIGUAN (AD1; AX1)/2,0 TSI 4motion/CHHB, Volkswagen/TIGUAN ALLSPACE (BW2; BJ2)/2,0 TSI 4motion/CXDA, Volkswagen/TIGUAN ALLSPACE (BW2; BJ2)/2,0 TSI 4motion/DNJA



APLIKAČNÍ KATALOG ACL

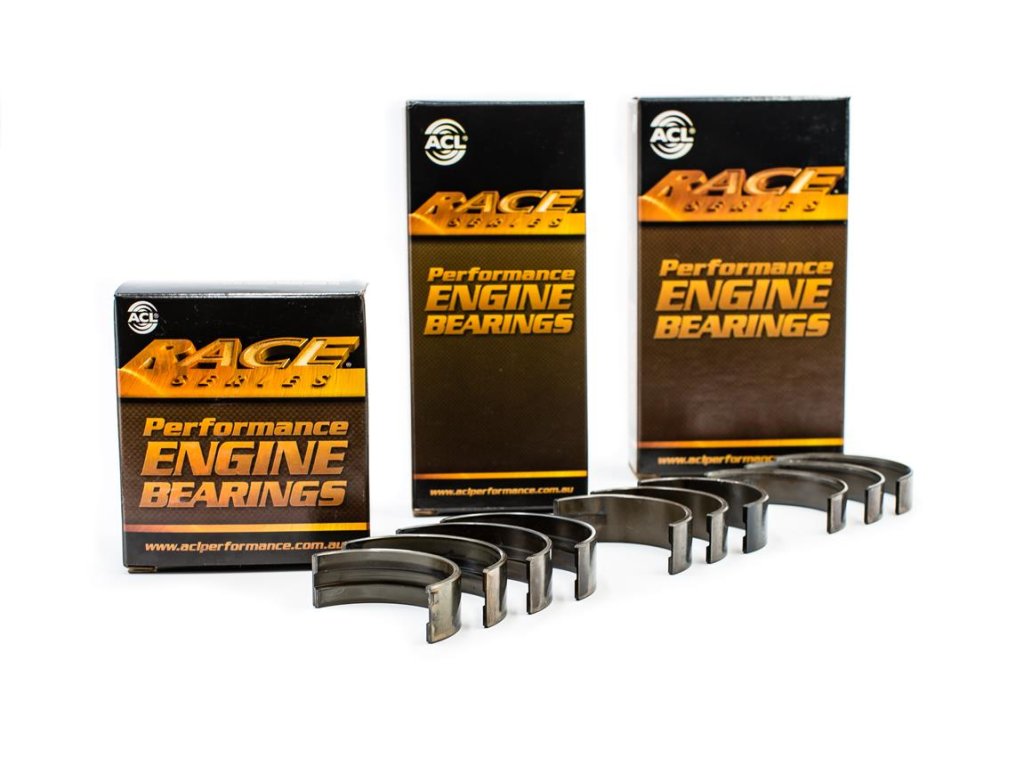

Obrázek je pouze ilustrační.

ACL je australská společnost s více než 70letou tradicí výroby přesných ložisek motorů, sídlící v Launcestonu, Tasmánie. Firma je významným dodavatelem OEM ložisek pro automobilový průmysl a zároveň nabízí rozsáhlý sortiment náhradních dílů pro globální aftermarket. Její produkty jsou známé svou vysokou kvalitou, precizností, robustní metalurgií a výkonem.

ACL má bohatou historii v motorsportu, sahající až do 60. let, kdy vyráběla ložiska pro tým Brabham ve Formuli 1. Její RACE Series Performance Engine Bearings si našly uplatnění v závodech jako australské Supercars, drag racing, rally a drift. Díky tomu jsou často první volbou pro motorové specialisty po celém světě.

Společnost nabízí jednu z největších nabídek ložisek motorů na aftermarketu, pokrývající přes 200 aplikací pro australské, americké, japonské, korejské a evropské vozy. Sortiment se neustále rozšiřuje o nově uvedené motory.

ACL disponuje vysokou úrovní vertikální integrace, zahrnující návrh a výrobu materiálů, nástrojů a složitých výrobních procesů. Firma se pyšní certifikacemi ISO9001:2015 (kvalita), ISO14001:2015 (ekologie) a ISO451001:2018 (bezpečnost práce).

Díky této kombinaci tradice, inovace a zaměření na výkon si ACL vybudovalo celosvětovou reputaci v oblasti motorových ložisek.
